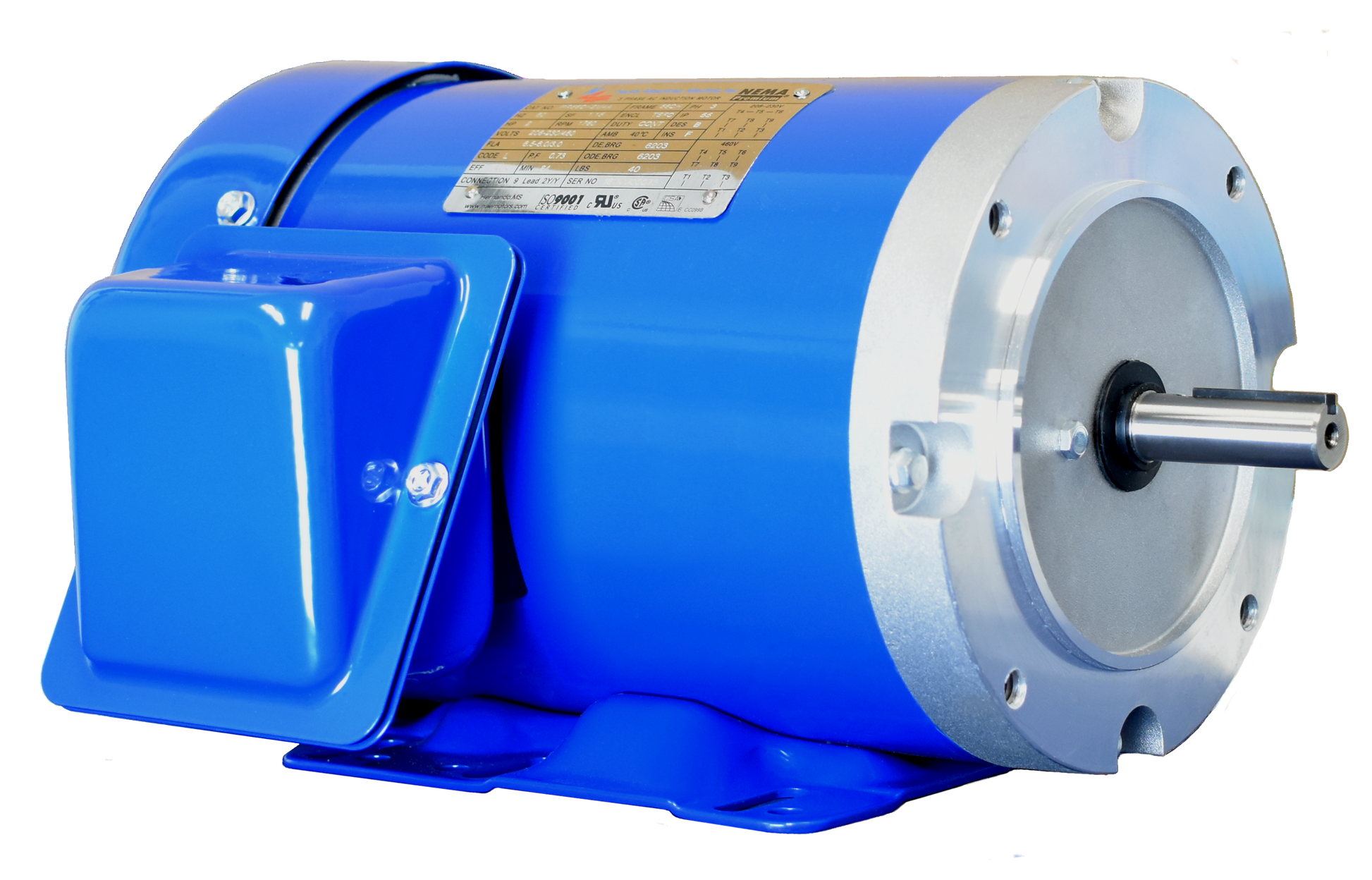

North American Electric PR56C1M2A-575V 1 HP, 3600 RPM, 56C Frame, 575V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., TEFC, Gen Purp, Rolled Steel, Prem Eff, Inverter Rated

PR56C1M2A-575V, 1 HP, 3600 RPM, 56C Frame, 575V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., TEFC, Gen Purp, Rolled Steel, Prem Eff, Inverter Rated

Engineering Data

HP 1
RPM 3600
Mult. Sym. M2
Frame 56C
Volts 575
Enclosure TEFC
F.L. Eff. 77
Notes 1,2
"C" Dim. 11.8"
F.L. Amps 1.3

Meets or exceeds EPACT ’92 and NRCan efficiency requirements
Suitable for wye-delta start on 213T frame and above
Dual voltage ratings suitable for part wind start on lower voltage
1.15 Service Factor @ 60 hertz
Inverter Rated (10:1 variable torque – 5:1 constant torque)
Vacuum Pressure Impregnation for all windings
Sealed bearings thru 215T frame
Class F insulation system, class B rise at full load
40° C ambient continuous duty
Corrosion resistant epoxy paint
Stainless steel nameplate and zinc plated hardware
F1/F2 reversible
Feet are dual drilled for mounting flexibility
NEMA Design B performance
Rolled steel frame construction
C-Flange field conversion kits available
Lifting provisions on 143T frame and above
Condensation drains with plastic plugs
IP55 Protection
CSA + C + US Certification
ISO 9001 Certification
