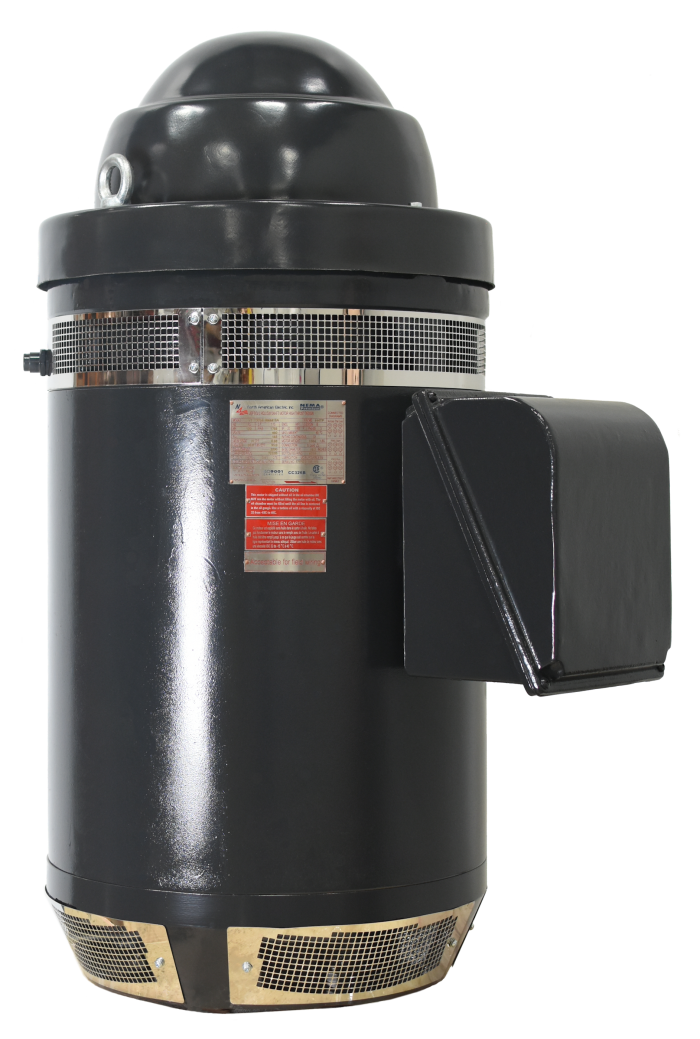

North American Electric V1-150S4-W44416A, 150 HP, 1800 RPM, 444TP Frame, 460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., WP1,Vertical Hollow Shaft Motor, Cast Iron, Prem Eff, Inverter Rated, includes 1.688 Coupling

V1-150S4-W44416A, 150 HP, 1800 RPM, 444TP Frame, 460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., WP1,Vertical Hollow Shaft Motor, Cast Iron, Prem Eff, Inverter Rated, includes 1.688 Coupling

PRODUCT DETAILS

HP 150
RPM 1800
Frame 444TP
Mult. Sym. M15
Volts 460
Frame Type VHS
CD Dim. 42.66"
BD Dim. 16.5"
Nominal BX 1.69
SQKey EW 0.375
Down Thrust 7200
F.L. Eff. 95.8
Notes 2

Features

Meets or exceeds NEMA performance standards
Three Phase, 60 Hz
Enclosure: WP1 – Open weather-protected machine Type 1 to NEMA MG 1-1993 (WP-1).
Inverter Duty (10:1 variable torque)
Cast Iron Construction
Hi-Thrust Design
Precision Balancing
40° C ambient temperature
Class F insulation system, class B rise at full load
Class H impregnation resin
Class B Temperature Rise @ 1.15 Service Factor
Oversized angular contact bearing and ball bearing
Large oil bath reservoir on 324TP frame and up
Greasable top bearings on 286TP frame and down
High Torque
Vacuum Pressure Impregnation (VPI Treatment) for all windings
