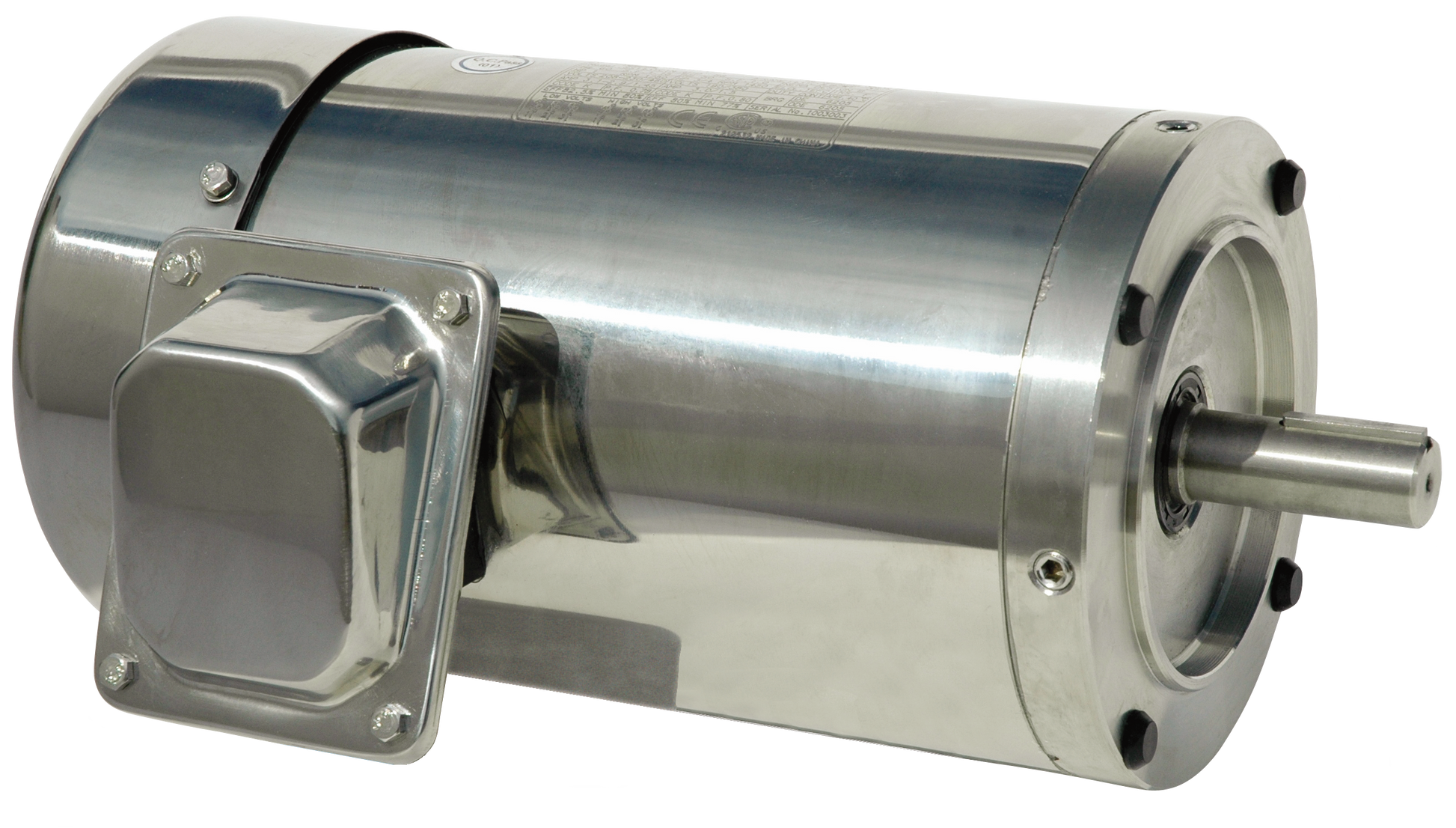

North American Electric PESS56C1.5M-2-RB, 1.5 HP, 3600 RPM, 56C Frame, 208-230/460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., IP66 Encl, Washdown Duty, Stainless Steel, Prem Eff, Inverter Duty, C-Flange with Round Body

PESS56C1.5M-2-RB, 1.5 HP, 3600 RPM, 56C Frame, 208-230/460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., IP66 Encl, Washdown Duty, Stainless Steel, Prem Eff, Inverter Duty, C-Flange with Round Body

Engineering Data

Output: 1.5 HP
RPM: 3600
Voltage: 208/230/460V @ 60Hz)
Full Load Amps: 2 A
Enclosure: TEFC (Totally Enclosed Fan Cooled)
Frame: 56C
Mounting: C-face (NO base)
Service Factor: 1.15
Efficiency: 84 (NEMA PREMIUM)
Bearings: 6205-2RS / 6205-2RS
Shaft dimensions (dia x len): 5/8" x 1-7/8"
Factory New with manufacturer's warranty
1.15 Service Factor @ 50/60 Hertz
Inverter Duty (20:1 VT; 10:1 CT)
Double Sealed Bearings in Both Ends
Class F Insulation System; Class B Rise at Full Load;
Class H Vacuum Pressure Impregnation (VPI) Resin for All Windings
Double Sealed Bearings in Both Ends
40oC Ambient Continuous Duty
NEMA Design B Performance / High Starting Torque
Dual Voltage Ratings Suitable for Part Wind Start on Lower Voltage
Condensation Drains with Plugs
Windings Rated for 2200V Peak Voltage Spikes
IP66 Protection

Features:

High Efficiency Design
All Stainless Steel Construction
IP66 Protections as standard
Inverter Duty (20:1 VT; 10:1 CT)
Vacuum Pressure Impregnation for all windings
Double sealed bearings in both ends
Class F insulation system, class B rise at full load
50 / 60 Hz @ 1.15 Service Factor
NEMA Design B performance
High starting torques
40° C ambient continuous duty
C-Flange as standard
Meets or exceeds NRCan efficiency requirements
ISO 9001 Certification
CSA + C + US Certification
UL Listed

Notes:

Meets NEMA MG-1, Table 12-11 Efficiency Requirements as Mandated by the Energy Independence and Security Act.
Meets MEMA MG-1, Table 12-12 Efficiency Requirements as Mandated by the Energy Independence and Security Act.
