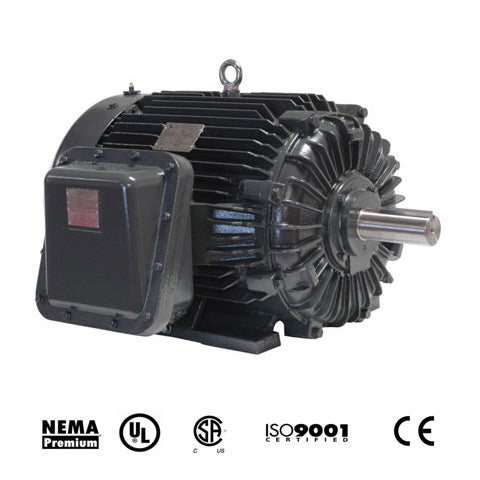

North American Electric PEXP254T-7.5-6, 7.5 HP, 1200 RPM, 254T Frame, 208-230/460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., TEXP, Explosion Proof, Cast Iron, Prem Eff, Inverter Rated

PEXP254T-7.5-6, 7.5 HP, 1200 RPM, 254T Frame, 208-230/460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., TEXP, Explosion Proof, Cast Iron, Prem Eff, Inverter Rated

PRODUCT DETAILS

HP 7.5
RPM 1200
Frame 254T
Volts 208-230/460
Enclosure TEXP
Nema Design B
F.L. Eff. 91.0
F.L. Amps 27.6 - 25 / 12.5
C Dim. 23.20

NEMA MG- 1, Table 12-12
143-215T frame: Class l, Div. l, Groups C, D and Class ll, Div. l, Groups F, G
T3C, w/ ambient temp rating: -20°C to 55°C @ 1.15 SF
T3C w/ ambient temp rating: -20°C to 40°C @ 1.0 SF for Inverter Duty
254-449T frame: Class l, Div. l, Groups C, D
T3C, w/ ambient temp rating: -20°C to 40°C @ 1.15 SF for Inverter Duty
T2B, w/ ambient temp rating: 20°C to 55°C @ 1.15 SF, or 1.0 SF for Inverter Duty
Class ll, Div. l, Groups F, G
T3C, w/ ambient temp rating: -20°C to 40°C @ 1.15 SF, or 1.0 SF for Inverter Duty
Dual voltage ratings suitable for part wind start on lower voltage
