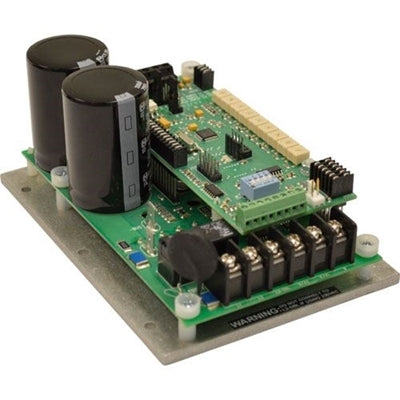

American Controls PML703-3-HL60, Line Voltage AC Drive, 115/230 Vac Input, 0-140 Vac/0-240 Vac Output, 1/10-3/4 Hp, Chassis, Trapezoid-Wound Brushes Motors

PML703-3-HL60, Line Voltage AC Drive, 115/230 Vac Input, 0-140 Vac/0-240 Vac Output, 1/10-3/4 Hp, Chassis, Trapezoid-Wound Brushes Motors PML Series -HL60: Requires 60° Hall Effect Sensors. The PML Series is a general purpose family of drives for brushless DC (electronically commutated) motors. With either a 115 VAC or 230 VAC line source, our drives can control motors that vary in the 90 to 180 VDC range, up to 5 amps or 1.5 HP. With the use of on-board trim pots, you can quickly set the maximum and minimum speeds, acceleration and deceleration rates, motoring and regening current limits, and the proportional and integral feedback gains. Each drive is designed for feedback from 120° hall effect sensors. The onboard microprocessor allows for custom programming for OEMs. Whether it’s as simple as changing the purpose of a jumper, input, or trim pot, to programming entire routines and behaviors specific only to the OEMs application, the PML is great for integrating PLC like functionality into your operation. Doing this can eliminate the need of a separate PLC altogether or enhance a system that currently does not have one. The PML Series has been tested to the 61800-5-1 Standard and is UL listed in the US and Canada, and includes isolation for remote control from an analog signal.
