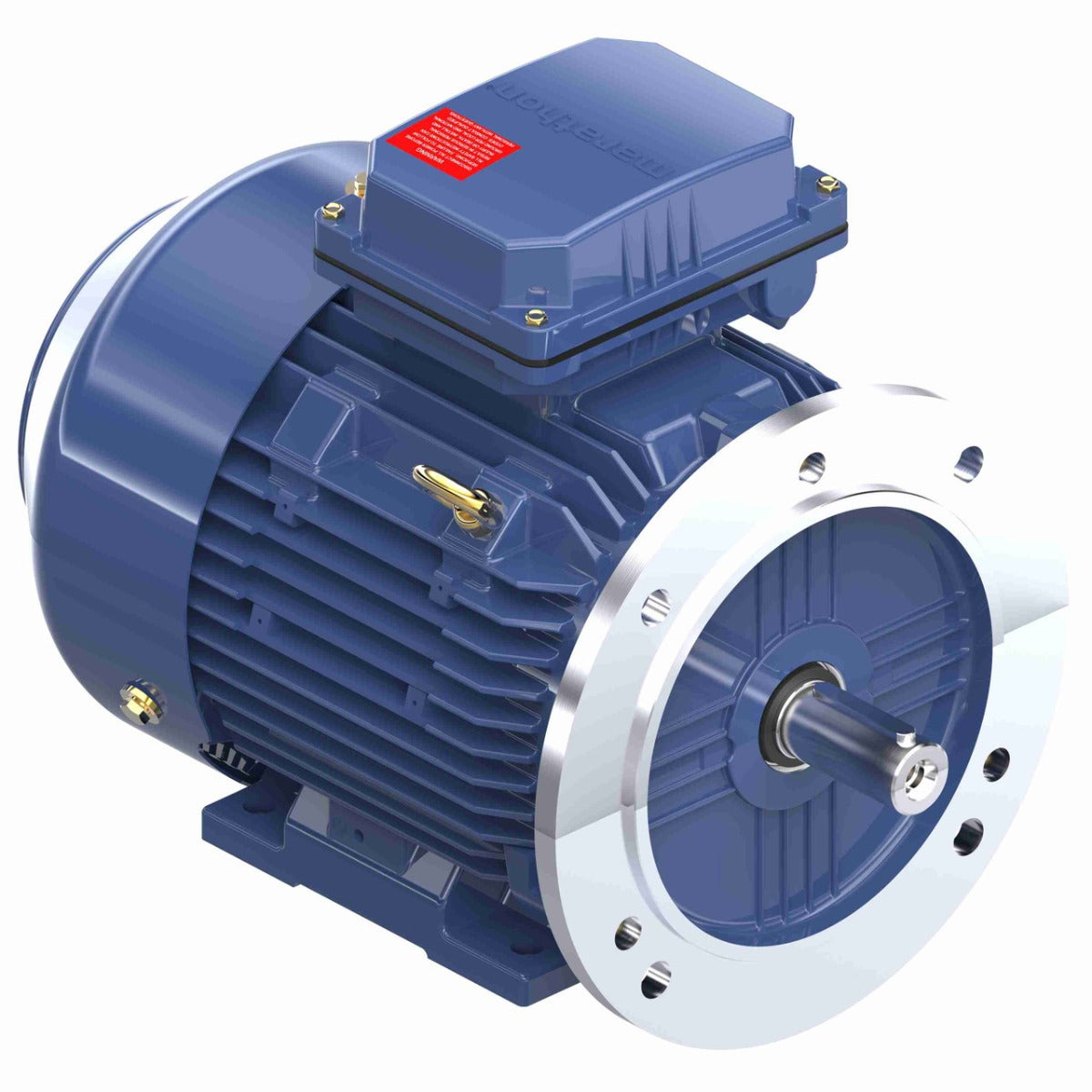

R824, 5 1/2 Hp- 4 Kw, 3600 Rpm, DF112MD FR, TEFC, 230/460 Vac, 3 PH, Rigid Base, B3/B5 Flange, AC Metric Motor

R824, 5 1/2 Hp- 4 Kw, 3600 Rpm, DF112MD FR, TEFC, 230/460 Vac, 3 PH, Rigid Base, B3/B5 Flange, AC Metric Motor. Engineering Data Volts 230 Volts 460 Volts 200/400 F.L. Amps 12.6 F.L. Amps 6.3 F.L. Amps 10.8/5.4 S. F Amps 14.6 S. F Amps 7.3 S. F Amps 12.2/6.1 RPM 3600 Hertz 60/50 HP 5 1/2 Duty CONTINUOUS TYPE TF KW 4.1 Frame 112M Serv. Factor 1.15 Phase 3 Max Amb 40 Design B Code J Insul Class F Protection NOT Therm.Prot. Eff 100% 89.5 Eff 75% PF 91 UL Y-(LEESON UL REC) CSA Yes Bearing OPE NONE CC Number CC005A CE Yes Bearing PE NONE Load Type Inverter Type Speed Range NONE Motor Wt. 104 LB Enclosure TEFC Lubrication VERIFY Nameplate 622232 Mounting RIGID Rotation REV Assembly Shaft Dia. Ext. Diag. 005465.01 Cust Part No Outline SS622370 Ext. Diag2 Packaging B Outline Dash No Winding T08702012 Carton Label GROUP : 3 Iris Paint STANDARD Test Card Form Factor RMS Amps Const Torque Speed Range Torque Peak AB Code Peak@DegC Resistance Connection Rework Status Rework TYPE Hazardous Loc NONE Brake Motors Explosion Proof Temp Op Code FORCE Class GROUP : VDC Class GROUP : ADC Brake Coil OHMs @25 C Performance Torque UOM Inertia (WK²) Torque CURRENT (amps) Efficiency (%) PowerFactor Load Curve Data @60/50 Hz , 400 Volts , 5 1/2 Horsepower Load Amps KW2 RPM Torque EFF PF Rise By Resis Frame Rise 0.0 1.9 0.12 3600 0.0 0.0 8.5 0.0 - 0.25 2.4 1.2 3580 2.0 87.5 62.5 0.0 - 0.5 3.5 2.3 3560 4.1 90.2 81.5 0.0 - 0.75 4.8 3.4 3535 6.1 90.2 88.5 0.0 - 1.0 6.3 4.6 3510 8.2 89.5 91.0 64.0 - 1.15 7.3 5.3 3495 9.5 88.5 91.5 83.0 - 1.25 8.0 5.8 3485 10.4 87.5 92.0 0.0 -
