Industrial Motors

American Controls RGD410-10, Line Voltage DC Drive, 230 Vac Input, 0-180 Vac Output, 1/4 - 2 Hp, Nema 1, PMDC Brushed Motors

American Controls RGD410-10, Line Voltage DC Drive, 230 Vac Input, 0-180 Vac Output, 1/4 - 2 Hp, Nema 1, PMDC Brushed Motors

$994.40
$994.40
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$994.40 $686.14
Sale

RGD410-10, Line Voltage DC Drive, 230 Vac Input, 0-180 Vac Output, 1/4 - 2 Hp, Nema 1, PMDC Brushed Motors

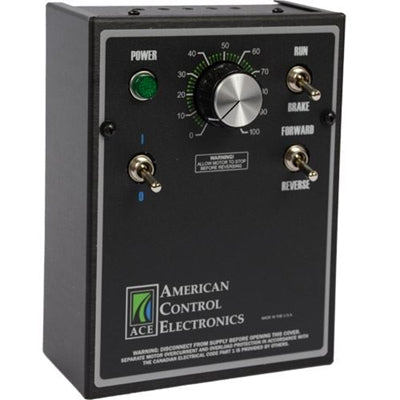

The RGD Series is an excellent low-cost solution for regenerative applications requiring a NEMA 1 enclosure. The dual AC input voltage not only brakes, but also reverses brushed motors on the fl y. For ease of use, the RGD has panel: power on/off switch, run/brake switch, forward/reverse switch and a speed potentiometer conveniently mounted to the front of the NEMA 1 enclosure. Calibrating the RGD is easy with the on-board trim pots and the deadband setting is automatically compensated for whether 50 or 60Hz power is used. The NEMA 1 enclosure provides protection against most foreign objects and accidental contact. When you have an application that requires quick braking or reversing, but you don’t need a heavy duty NEMA 4X enclosure, the RGD Series is your solution.
