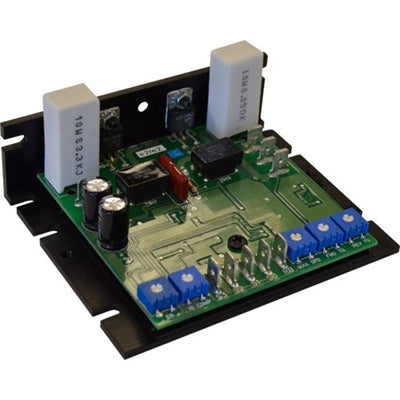

American Controls RGH100-5, Low Voltage DC Drive, 115 Vac Input, 0-75 Vac Output, 1/8 - 1/2 Hp, Open Chassis, PMDC Brushed Motors

RGH100-5, Low Voltage DC Drive, 115 Vac Input, 0-75 Vac Output, 1/8 - 1/2 Hp, Open Chassis, PMDC Brushed Motors

The RGH series is a regenerative half-wave SCR type drive series designed specifically for applications where quickly stopping or reversing a motor is required, but running at top rated speed is not. With the half-wave power section, the RGH Series drives can run up to 75 VDC with a 115 VAC input or 150 VDC with a 230 VAC input. With a widely used industry footprint standard, these compact 4Q drives eliminate the need for bulky mechanical relays or switches to reverse motor direction. As with all our 4Q drives, these units come standard with user adjustable trim pots for Max Speed, FWD/REV Torque, IR Comp, and DB. With these adjustments, a drive can easily be tuned to run almost any motor in the 1/8th to 1 HP range up to 80% of rated speed.Min Speed, Tach, and IR Comp. With these adjustments, a drive can easily be tuned to run almost any PMDC motor in the 1/20th to 2 HP range. Also available on the RGM series is a factory installed isolation module that allows the drive to be controlled via a non-isolated 4-20 mA or 0 to ±10 VDC command signal. With many user selectable stopping or enabling modes and Tachogenerator feedback, the RGM series is a versatile drive that can satisfy your reversing and control needs.
