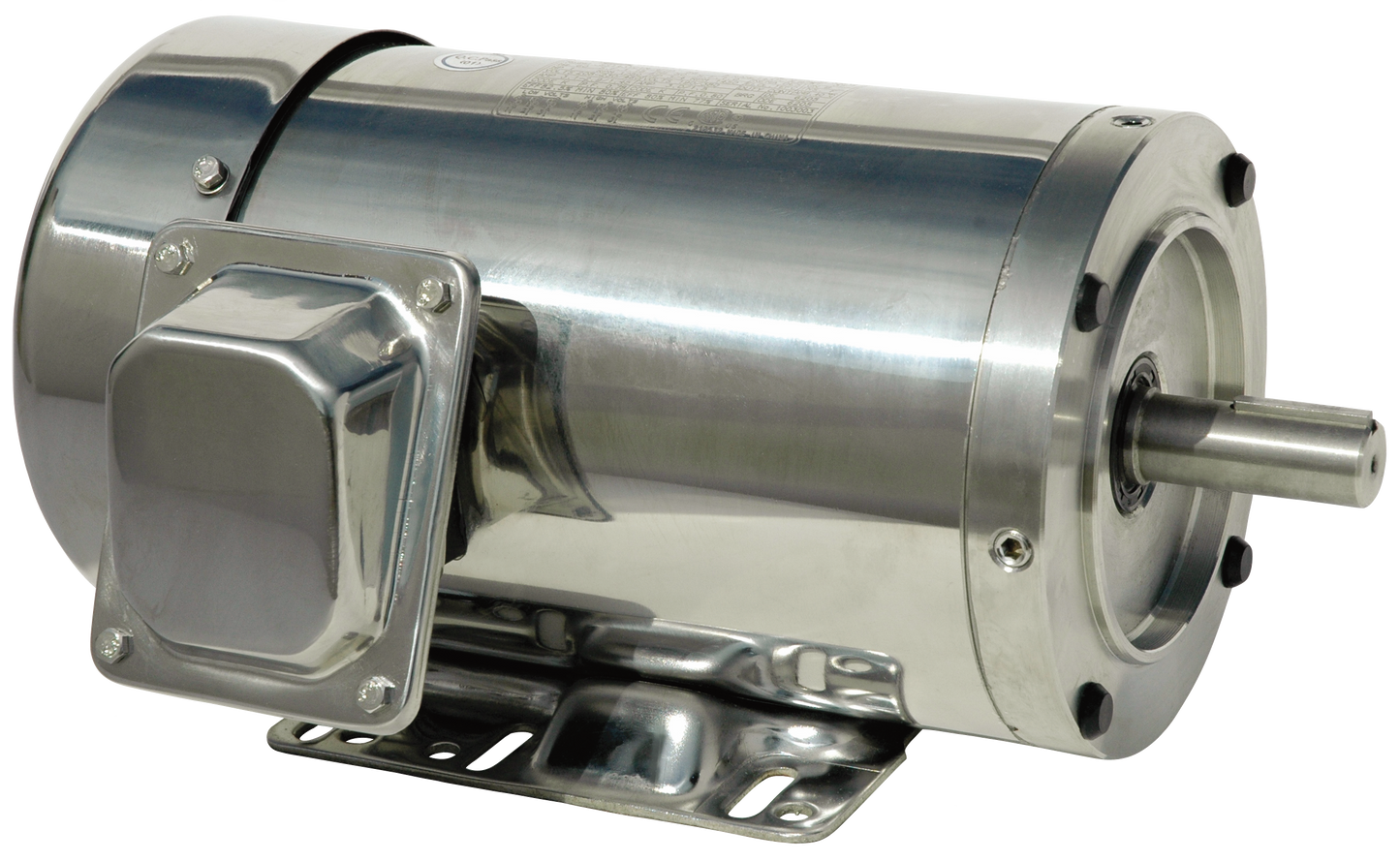

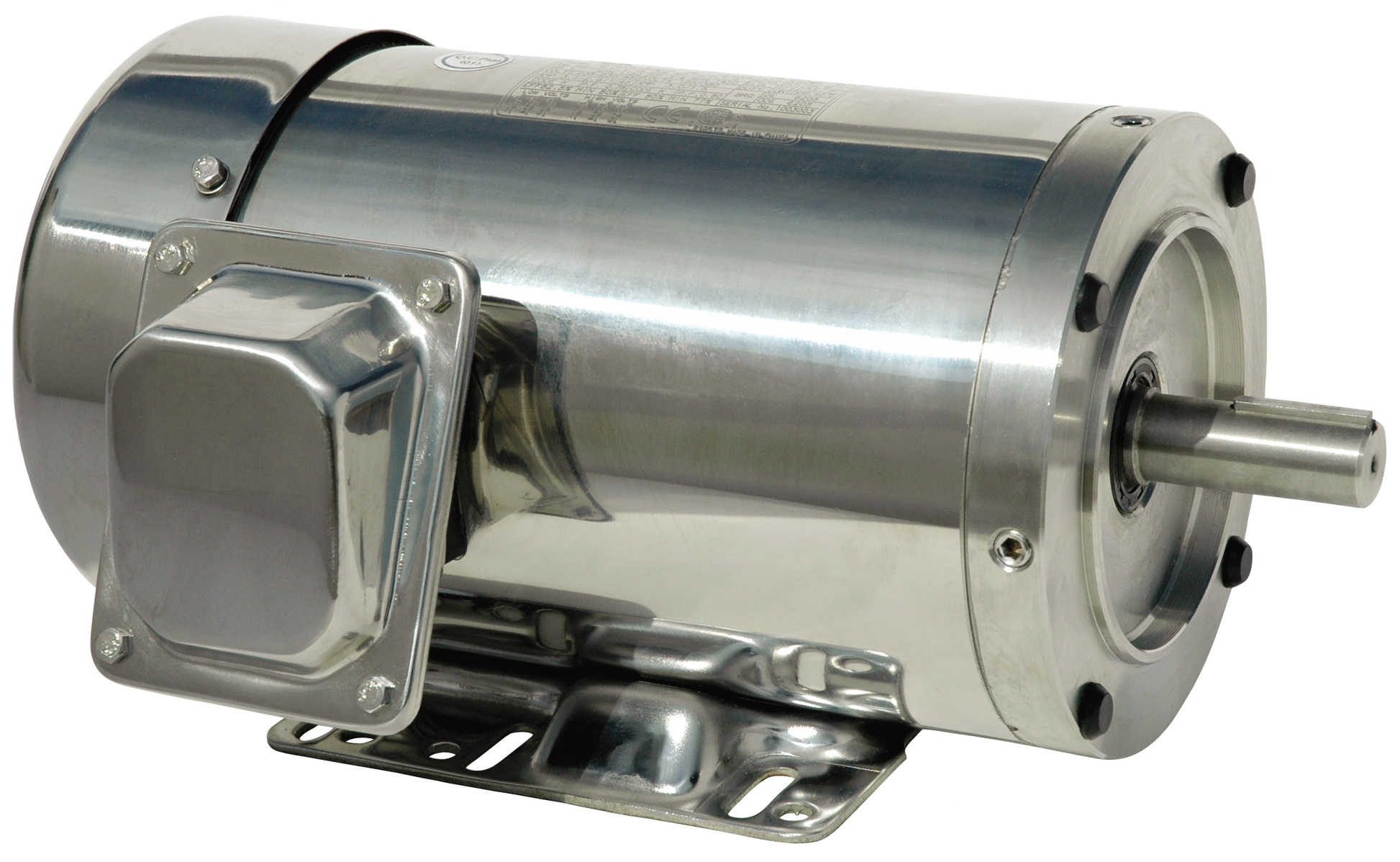

North American Electric SS56C1/3M-2, 1/3 HP, 3600 RPM, 56C Frame, 208-230/460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., IP66 Encl, Washdown Duty, Stainless Steel, Prem Eff, Inverter Duty, C-Flange with Feet

SS56C1/3M-2, 1/3 HP, 3600 RPM, 56C Frame, 208-230/460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., IP66 Encl, Washdown Duty, Stainless Steel, Prem Eff, Inverter Duty, C-Flange with Feet

PRODUCT DETAILS

HP 0.33
RPM 3600
Frame 56C
Mult. Sym. M18
Volts 208-230/460
Frame Type NESS
Enclosure TEFC
F.L. Eff. 74
"C" Dim. 11.6
Notes 1
F.L. Amps 0.55

Brand name : North American Electric
Item Name : Washdown Duty Motor
Short Desc : MOTOR-1/3-3600-56C-3 PH--STAINLESS STEEL
UNSPSC : 26101400
North American Electric 3-Phase C-Face with Rigid Base Mount Totally Enclosed Fan-Cooled Enclosure Wash-down Duty Motor

SPECS

Design & Construction

Bearing Type: Ball
Duty: Continous
Enclosure Type: Totally Enclosed Fan-Cooled
Insulation Type: Class F
Mounting Type: C-Face with Rigid Base
Shaft Position: Horizontal
Construction: Stainless Steel
Frame Type: 56C
KVA Code: K

Performance Details

1/2 Load Efficiency: 59%
3/4 Load Efficiency: 64%
Full Load Efficiency: 71.5% at 50 Hz, 74% at 60 Hz
Speed Rating: 3600 rpm
Torque Rating: 0.5 lb-ft

General Features

Type: NESS Frame
Standards: UL Listed, ISO 9001 Certified, CSA + C + US Certified, Meets or Exceeds NRCan Efficiency Requirement, CE Certified, NEMA MG1 PART 31
Net Weight: 26 lb

Environmental Condition

Temperature Rating: 40 deg C
Degree of Protection: IP66

Electrical Properties

Full Load Ampere: 1.2 A
HP Rating: 0.333 HP
Service Factor: 1.15
Voltage Rating: 380 V
1/2 Load Power Factor: 62%
3/4 Load Power Factor: 72%
Frequency Rating: 60 Hz
Full Load Power Factor: 85% at 60 Hz, 87% at 50 Hz
Phase: 3-Phase

Physical Properties

Dimensions: 11.59 Inch L
Frame Size: 56
Shaft Diameter: 0.625 Inch
Shaft Length: 1.88 Inch
Weight: 26 lb
Number of Poles: 2

FEATURES & APPLICATIONS

Features :

High efficiency design
Inverter duty (20:1 VT, 10:1 CT)
Vacuum pressure impregnation for all windings
Double sealed bearings in both ends
Class F insulation system, class B rise at full load
NEMA design B performance
High starting torques
C-flange as standard
Frequency Rating: 50/60�Hz
Full Load Ampere: 1.2 - 1.1A at 208 - 230V, 0.55A at 460V, 1.1/0.55A at 190/380V
Service Factor: 1.15 at 60 Hz, 1.2 at 50 Hz
Temperature Rating: 40 deg C Ambient
Torque Rating: 0.5 lb-ft (Full Load), 300 lb-ft (Break Down), 285 lb-ft (Locked Rotor)
Voltage Rating: 208 - 230/460V, 190/380V

Applications :

For Food Processing, Pharmaceutical And Other Environments Requiring Extreme Cleanliness And Frequent Wash downs. Applications Includes Wash-down Applications, Food Processing, Chemical Processing, Pharmaceuticals, Poultry Processing, Meat Processing, Dairy Applications, Bakeries, Snack Foods, Bottling And Extremely Corrosive Environmentscy Requirements as Mandated by the Energy Independence and Security Act.
