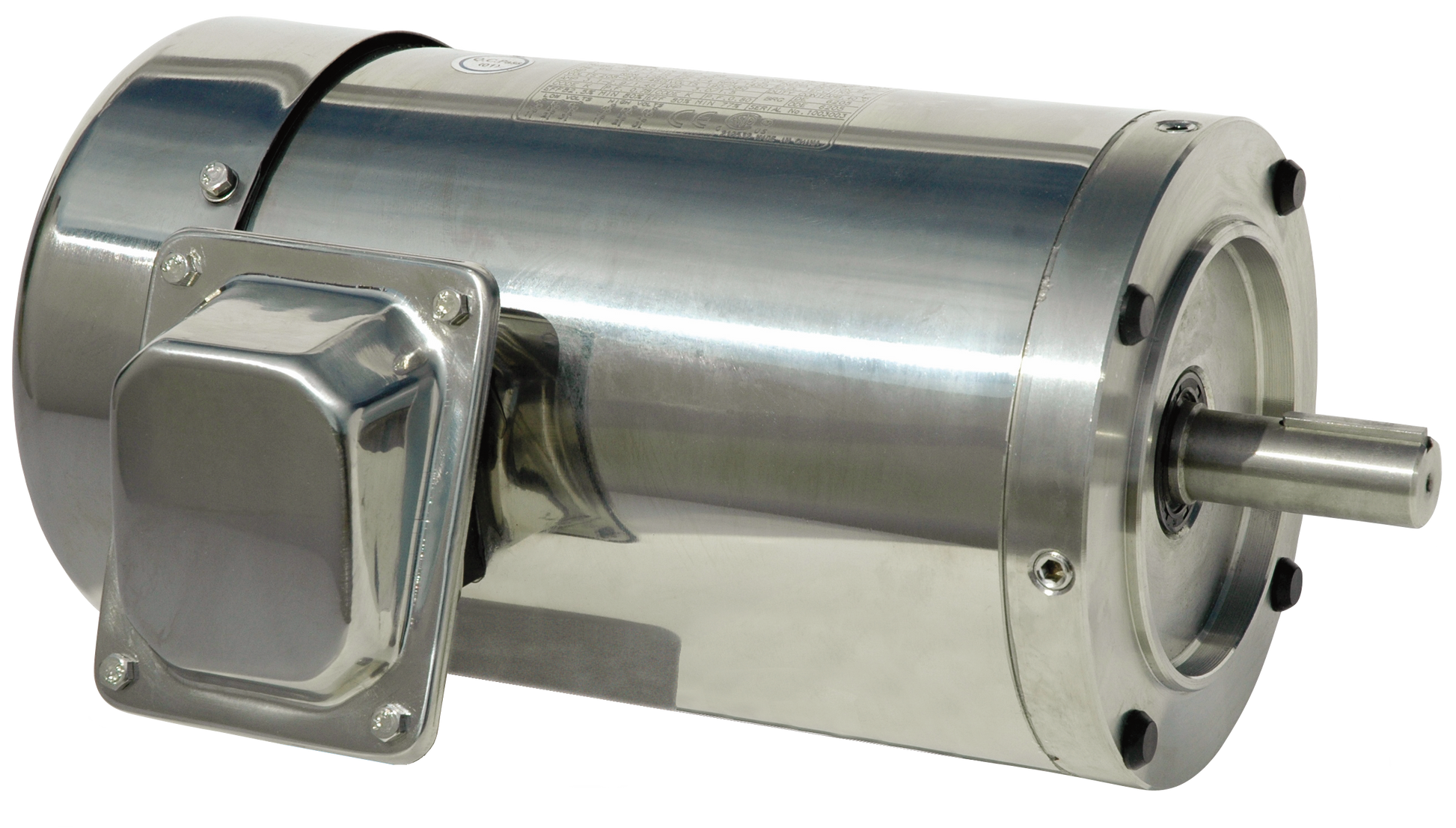

North American Electric SS56C3/4M-4-RB 3/4 HP, 1800 RPM, 56C Frame, 208-230/460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., IP66 Encl, Washdown Duty, Stainless Steel, Prem Eff, Inverter Duty, C-Flange with Round Body

SS56C3/4M-4-RB, 3/4 HP, 1800 RPM, 56C Frame, 208-230/460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., IP66 Encl, Washdown Duty, Stainless Steel, Prem Eff, Inverter Duty, C-Flange with Round Body PRODUCT DETAILS HP 0.75 RPM 1800 Frame 56C Volts 208-230/460 Enclosure TEFC Nema Design B F.L. Eff. 82.5 F.L. Amps 1.1 C Dim. 12.57 Brand name : North American Electric Item Name : Washdown Duty Motor Short Desc : MOTOR-3/4-1800-56C-3 PH--STAINLESS STEEL UNSPSC : 26101400 North American Electric 3-Phase Round, C-Face Less Base Mount Totally Enclosed Fan-Cooled Enclosure Wash-down Duty Motor SPECS Design & Construction Bearing Type: Ball Duty: Continous Enclosure Type: Totally Enclosed Fan-Cooled Insulation Type: Class F Mounting Type: Round, C-Face Less Base Shaft Position: Horizontal Construction: Stainless Steel Frame Type: 56C KVA Code: K Performance Details 1/2 Load Efficiency: 72% 3/4 Load Efficiency: 77% Full Load Efficiency: 80% at 50 Hz, 82.5% at 60 Hz Speed Rating: 1800 rpm Torque Rating: 2.2 lb-ft General Features Type: NESS Frame Standards: UL Listed, ISO 9001 Certified, CSA + C + US Certified, Meets or Exceeds NRCan Efficiency Requirement, CE Certified, NEMA MG1 PART 31 Net Weight: 33 lb Environmental Condition Temperature Rating: 40 deg C Degree of Protection: IP66 Electrical Properties Full Load Ampere: 2.4 A HP Rating: 0.75 HP Service Factor: 1.15 Voltage Rating: 380 V 1/2 Load Power Factor: 56% 3/4 Load Power Factor: 64% Frequency Rating: 60 Hz Full Load Power Factor: 78% at 60 Hz, 80% at 50 Hz Phase: 3-Phase Physical Properties Dimensions: 11.59 Inch L Frame Size: 56 Shaft Diameter: 0.625 Inch Shaft Length: 1.88 Inch Weight: 33 lb Number of Poles: 4 FEATURES & APPLICATIONS Features : High efficiency design Inverter duty (20:1 VT, 10:1 CT) Vacuum pressure impregnation for all windings Double sealed bearings in both ends Class F insulation system, class B rise at full load NEMA design B performance High starting torques C-flange as standard Frequency Rating: 50/60�Hz Full Load Ampere: 2.4 - 2.2A at 208 - 230V, 1.1A at 460V, 1.8/0.9A at 190/380V Service Factor: 1.15 at 60 Hz, 1.2 at 50 Hz Temperature Rating: 40 deg C Ambient Torque Rating: 2.2 lb-ft (Full Load), 300 lb-ft (Break Down), 285 lb-ft (Locked Rotor) Voltage Rating: 208 - 230/460V, 190/380V Applications : For Food Processing, Pharmaceutical And Other Environments Requiring Extreme Cleanliness And Frequent Wash downs. Applications Includes Wash-down Applications, Food Processing, Chemical Processing, Pharmaceuticals, Poultry Processing, Meat Processing, Dairy Applications, Bakeries, Snack Foods, Bottling And Extremely Corrosive Environments
