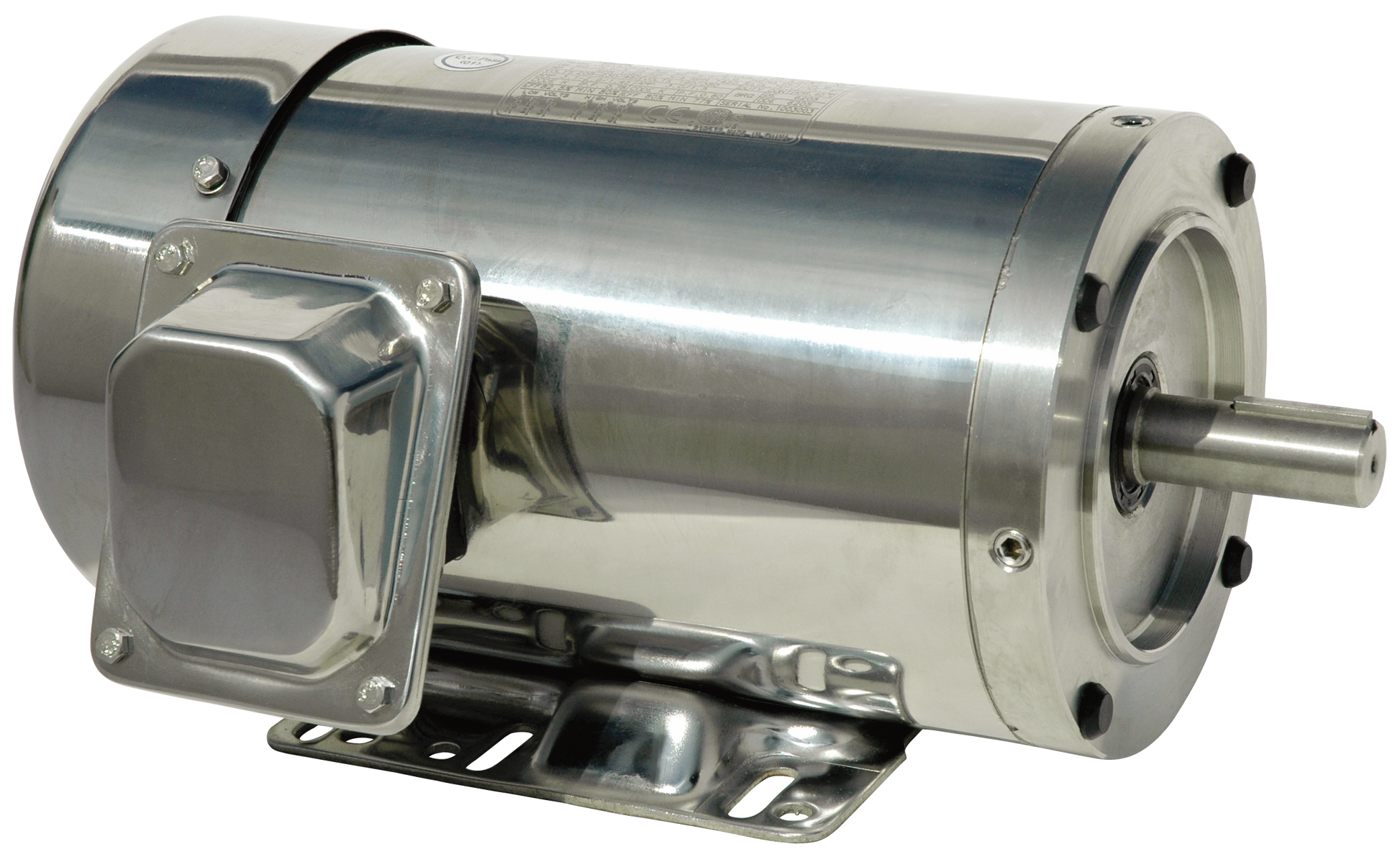

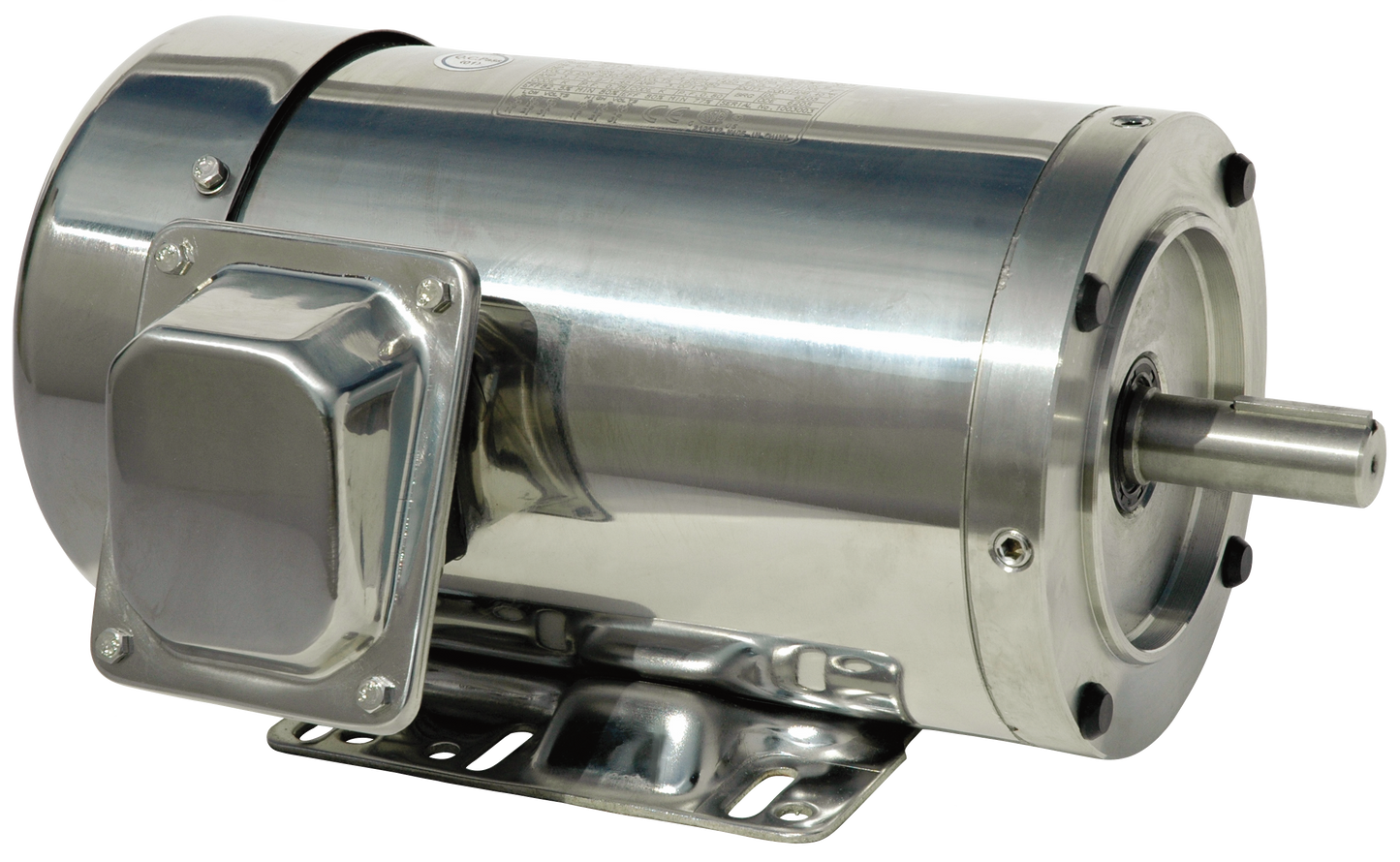

North American Electric SS56C3/4M-6, 3/4 HP, 1200 RPM, 56C Frame, 208-230/460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., IP66 Encl, Washdown Duty, Stainless Steel, Prem Eff, Inverter Duty, C-Flange with Feet

SS56C3/4M-6, 3/4 HP, 1200 RPM, 56C Frame, 208-230/460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., IP66 Encl, Washdown Duty, Stainless Steel, Prem Eff, Inverter Duty, C-Flange with Feet

PRODUCT DETAILS

HP 0.75
RPM 1200
Frame 56C
Mult. Sym. M18
Volts 208-230/460
Frame Type NESS
Enclosure TEFC
F.L. Eff. 80
"C" Dim. 12.6
Notes 1
F.L. Amps 1.85

Brand name : North American Electric
Item Name : Washdown Duty Motor
Short Desc : MOTOR-3/4-1200-56C-3 PH--STAINLESS STEEL
UNSPSC : 26101400
North American Electric 3-Phase C-Face with Rigid Base Mount Totally Enclosed Fan-Cooled Enclosure Wash-down Duty Motor

SPECS

Design & Construction

Bearing Type: Ball
Duty: Continous
Enclosure Type: Totally Enclosed Fan-Cooled
Insulation Type: Class F
Mounting Type: C-Face with Rigid Base
Shaft Position: Horizontal
Construction: Stainless Steel
Frame Type: 56C
KVA Code: K

Performance Details

1/2 Load Efficiency: 71%
3/4 Load Efficiency: 76%
Full Load Efficiency: 77% at 50 Hz, 80% at 60 Hz
Speed Rating: 1200 rpm
Torque Rating: 3.3 lb-ft

General Features

Type: NESS Frame
Standards: UL Listed, ISO 9001 Certified, CSA + C + US Certified, Meets or Exceeds NRCan Efficiency Requirement, CE Certified, NEMA MG1 PART 31
Net Weight: 35 lb

Environmental Condition

Temperature Rating: 40 deg C
Degree of Protection: IP66

Electrical Properties

Full Load Ampere: 4.1 A
HP Rating: 0.75 HP
Service Factor: 1.15
Voltage Rating: 380 V
1/2 Load Power Factor: 50%
3/4 Load Power Factor: 58%
Frequency Rating: 60 Hz
Full Load Power Factor: 65% at 60 Hz, 67% at 50 Hz
Phase: 3-Phase

Physical Properties

Dimensions: 11.59 Inch L
Frame Size: 56
Shaft Diameter: 0.625 Inch
Shaft Length: 1.88 Inch
Weight: 35 lb
Number of Poles: 6

FEATURES & APPLICATIONS

Features :

High efficiency design
Inverter duty (20:1 VT, 10:1 CT)
Vacuum pressure impregnation for all windings
Double sealed bearings in both ends
Class F insulation system, class B rise at full load
NEMA design B performance
High starting torques
C-flange as standard
Frequency Rating: 50/60�Hz
Full Load Ampere: 4.1 - 3.7A at 208 - 230V, 1.85A at 460V, 2.8/1.4A at 190/380V
Service Factor: 1.15 at 60 Hz, 1.2 at 50 Hz
Temperature Rating: 40 deg C Ambient
Torque Rating: 3.3 lb-ft (Full Load), 280 lb-ft (Break Down), 255 lb-ft (Locked Rotor)
Voltage Rating: 208 - 230/460V, 190/380V

Applications :

For Food Processing, Pharmaceutical And Other Environments Requiring Extreme Cleanliness And Frequent Wash downs. Applications Includes Wash-down Applications, Food Processing, Chemical Processing, Pharmaceuticals, Poultry Processing, Meat Processing, Dairy Applications, Bakeries, Snack Foods, Bottling And Extremely Corrosive Environments
