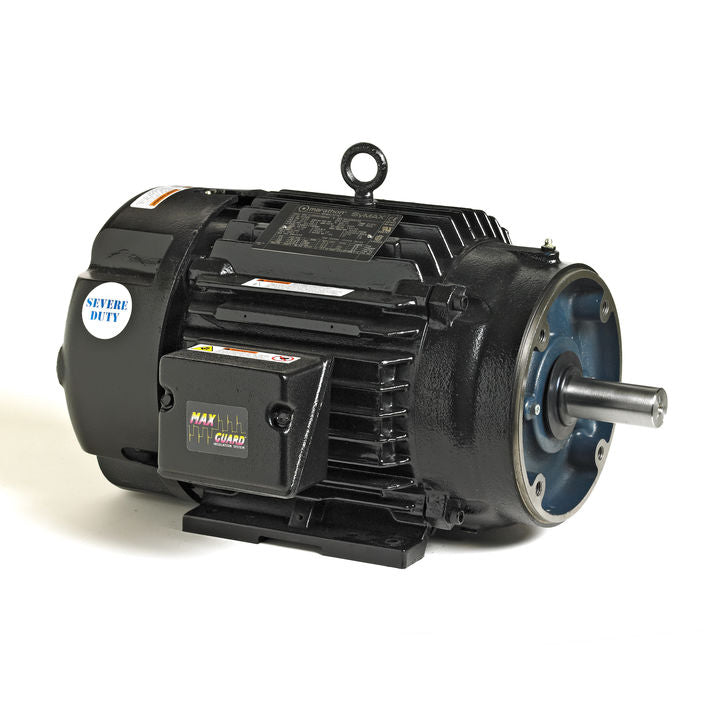

Marathon Electric SY006A, 3 Hp,1800 Rpm, 182TC FR, 230/460 Vac, 3 PH, Permanent Magnet AC Motors, TENV, 182TPNSB10237.

SY006A, 3 Hp,1800 Rpm, 182TC FR, 230/460 Vac, 3 PH, Permanent Magnet AC Motors, TENV, 182TPNSB10237.

Engineering Data

Output HP  3 Hp
Output KW  2.24 kW
Frequency  90 Hz
Voltage   230/460 V
Current  6.8/3.4 A
Speed  1800 rpm
Service Factor  1
Phases  3
Efficiency  92.9 %
Duty  CONTINUOUS
Insulation Class  H
Design Code  PM
KVA Code  N/A
Frame  182TC
Enclosure  TENV
Overload Protector  NOT
Ambient Temperature  40 °C
Drive End Bearing Size  6207
Opp Drive End Bearing Size  6207
UL  Recognized
CSA  N
CE  N
IP Code  54

Technical Specifications

Electrical Type  AC PERMANENT MAGNET
Starting Method INVERTER ONLY
Poles  6
Rotation  REV
Mounting  RIGID
Motor Orientatio  HORIZONTAL
Drive End Bearing  BALL
Opp Drive End Bearing  BALL
Frame Material  CAST IRON
Shaft Type T
Overall Length  17.5 in
Frame Length 8. in
Shaft Diameter  1.13 in
Shaft Extension  2.62 in
Assembly/Box Mounting  F1 ONLY
