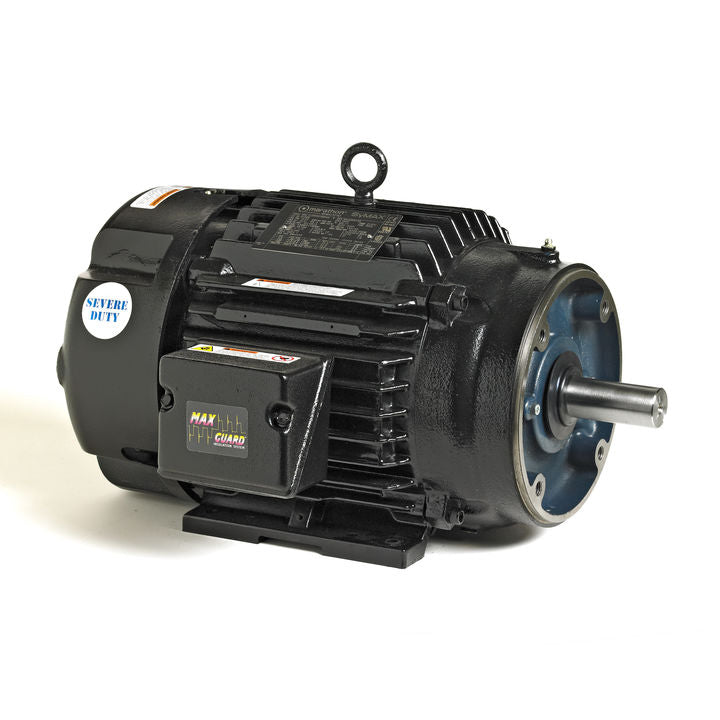

Marathon Electric SY009A, 10 Hp, 1800 Rpm, 215TC FR, 230/460 Vac, 3 PH, Permanent Magnet AC Motors, TENV, 215TPNSB10235.

SY009A, 10 Hp, 1800 Rpm, 215TC FR, 230/460 Vac, 3 PH, Permanent Magnet AC Motors, TENV, 215TPNSB10235.

Engineering Data

Output HP :10 HP
Output KW :7.5 kW
Frequency :90 Hz
Voltage :230/460 V
Current :24.6/12.3 A
Speed :1800 RPM
Service Factor :1
Phase :3
Efficiency :93.9 %
Duty :Continous
Insulation Class :H
Design Code :No Design Code
KVA Code :NO KVA CODE
Frame :215TC
Enclosure :Totally Enclosed Non Ventilated
Overload Protector :No
Ambient Temperature :40 °C
Drive End Bearing Size :6309
Opp Drive End Bearing Size :6208
UL :Recognized
CSA :N
CE :NIP Code :54
Technical Specifications
Electrical Type :AC Permament Magnet
Starting Method :Inverter Only
Poles :6
Rotation :Reversible
Mounting :Rigid Base
Motor Orientation :Horizontal
Drive End Bearing :Ball
Opp Drive End Bearing :Ball
Frame Material :Cast Iron
Shaft Type :T
Overall Length :20.41 in
Frame Length :9.12 in
Shaft Diameter :1 3 in
Shaft Extension :3.12 in
