Industrial Motors

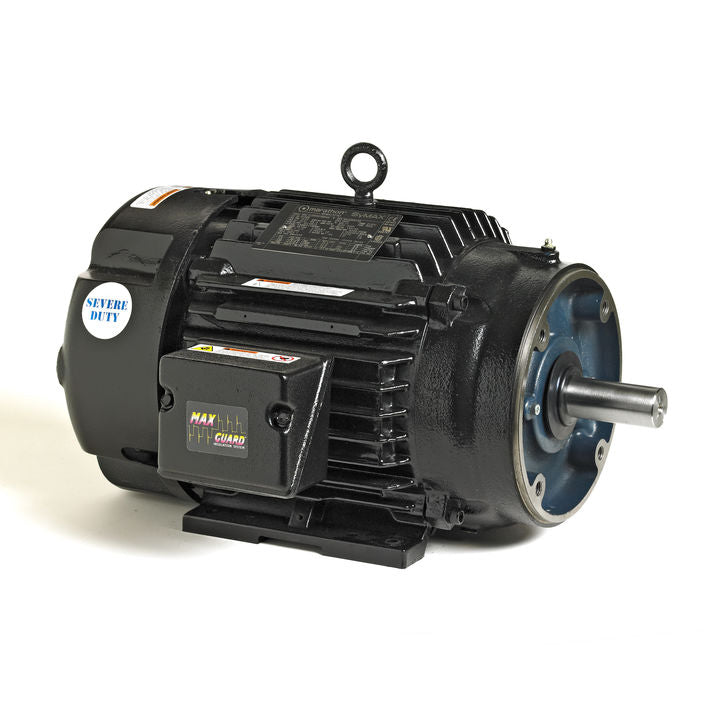

Marathon Electric SY011, 20 Hp,1800 Rpm, 256TC FR, 460 Vac, 3 PH, Permanent Magnet AC Motors, TEFC, 256TPFSA10087.

Marathon Electric SY011, 20 Hp,1800 Rpm, 256TC FR, 460 Vac, 3 PH, Permanent Magnet AC Motors, TEFC, 256TPFSA10087.

$4,214.52
$4,214.52
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$4,214.52 $4,003.80
Sale

SY011, 20 Hp,1800 Rpm, 256TC FR, 460 Vac, 3 PH, Permanent Magnet AC Motors, TEFC, 256TPFSA10087.

Engineering Data

Output HP :20 HP
Output KW :14.9 kW
Frequency :120 Hz
Voltage :460 V
Current :24.0 A
Speed :1800 RPM
Service Factor :1
Phase :3
Efficiency :94.5 %
Duty :Continuous
Insulation Class :H
Design Code :No Design Code
KVA Code :NO
KVA CODE
Frame :256TC
Enclosure :Totally Enclosed Fan Cooled
Overload Protector :No
Ambient Temperature :40 °C
Drive End Bearing Size :6309
Opp Drive End Bearing Size :6210
UL :Recognized
CSA :Y
CE :YIP Code :54
Technical Specifications
Electrical Type :AC Permament Magnet
Starting Method :Inverter Only
Poles :8
Rotation :Reversible
Mounting :Rigid Base
Motor Orientation :Horizontal
Drive End Bearing :Ball
Opp Drive End Bearing :Ball
Frame Material :Cast Iron
Shaft Type :T
Overall Length :25.68 in
Frame Length :12.25 in
Shaft Diameter :1 5 in
Shaft Extension :3.75 in
