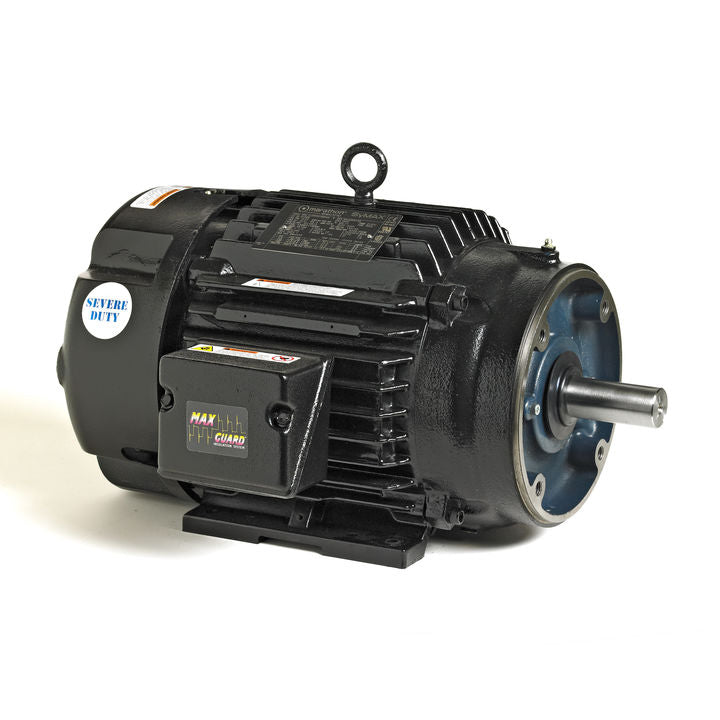

Marathon Electric SY012, 25 Hp,1800 Rpm, 284TC FR, 460 Vac, 3 PH, Permanent Magnet AC Motors, TEFC, 284TPFSA10112.

SY012, 25 Hp,1800 Rpm, 284TC FR, 460 Vac, 3 PH, Permanent Magnet AC Motors, TEFC, 284TPFSA10112.

Engineering Data

Output HP :25 HP
Output KW :18.7 kW
Frequency :120 Hz
Voltage :460 V
Current :30.0 A
Speed :1800 RPM
Service Factor :1
Phase :3
Efficiency :94.5 %
Duty :Continous
Insulation Class :H
Design Code :No Design Code
KVA Code :NO
KVA CODE
Frame :284TC
Enclosure :Totally Enclosed Fan Cooled
Overload Protector :No
Ambient Temperature :40 °C
Drive End Bearing Size :6311
Opp Drive End Bearing Size :6210
UL :RecognizedCSA :Y
CE :YIP Code :54
Technical Specifications
Electrical Type :AC Permament Magnet
Starting Method :Inverter Only
Poles :8
Rotation :Reversible
Mounting :Rigid Base
Motor Orientation :Horizontal
Drive End Bearing :Ball
Opp Drive End Bearing :Ball
Frame Material :Cast Iron
Shaft Type :T
Overall Length :26.21 in
Frame Length :12.75 in
Shaft Diameter :1 7 in
Shaft Extension :4.37 in
Assembly/Box Mounting :F1/F2 Capable
UPC :722856025807
