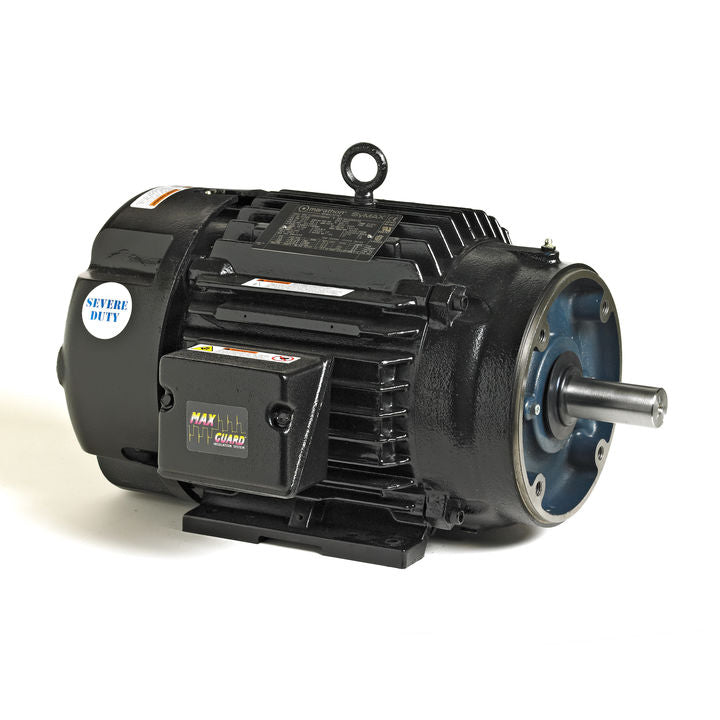

Marathon Electric SY013, 30 Hp,1800 Rpm, 286TC FR, 460 Vac, 3 PH, Permanent Magnet AC Motors, TEFC, 286TPFSA10090.

Marathon Electric SY013, 30 Hp,1800 Rpm, 286TC FR, 460 Vac, 3 PH, Permanent Magnet AC Motors, TEFC, 286TPFSA10090.

$5,402.70
$5,402.70
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$5,402.70 $5,132.57
Sale

SY013, 30 Hp,1800 Rpm, 286TC FR, 460 Vac, 3 PH, Permanent Magnet AC Motors, TEFC, 286TPFSA10090.

Engineering Data

Output HP :30 HP
Output KW :22.4 kW
Frequency :120 Hz
Voltage :460 V
Current :35.5 A
Speed :1800 RPM
Service Factor :1
Phase :3
Efficiency :95.4 %
Duty :Continuous
Insulation Class :H
Design Code :No Design Code
KVA Code :NO KVA CODE
Frame :286TC
Enclosure :Totally Enclosed Fan Cooled
Overload Protector :No
Ambient Temperature :40 °C
Drive End Bearing Size :6311
Opp Drive End Bearing Size :6210
UL :Recognized
CSA :Y
CE :YIP Code :54
Technical Specifications
Electrical Type :AC Permament Magnet
Starting Method :Inverter Only
Poles :8
Rotation :Reversible
Mounting :Rigid Base
Motor Orientation :Horizontal
Drive End Bearing :Ball
Opp Drive End Bearing :Ball
Frame Material :Cast Iron
Shaft Type :T
Overall Length :27.71 in
Frame Length :14.25 in
Shaft Diameter :1 7 in
Shaft Extension :4.37 in
