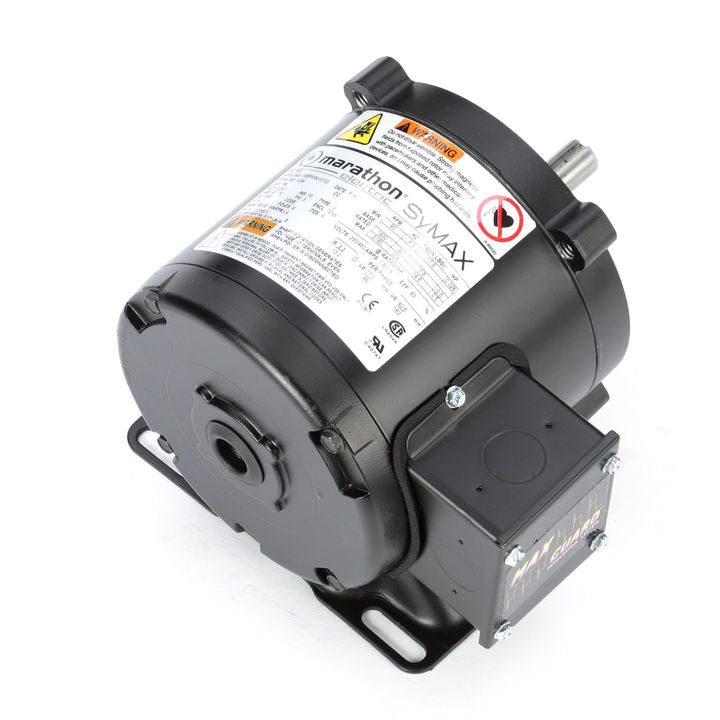

Marathon Electric SY036, 3 Hp,1200 Rpm, 182TC FR, 230/460 Vac, 3 PH, Permanent Magnet AC Motors, TENV & TEFC, 182TPFRB10181.

SY036, 3 Hp,1200 Rpm, 182TC FR, 230/460 Vac, 3 PH, Permanent Magnet AC Motors, TENV & TEFC, 182TPFRB10181.

Engineering Data

Output HP : 3 HP
Output KW : 2.2 kW
Frequency : 60 Hz
Voltage : 230/460 V
Current : 7.0/3.5 A
Speed : 1200 RPM
Service Factor : 1
Phase : 3
Efficiency : 93 %
Duty : Continuous
Insulation Class : H
Design Code : No
Design Code KVA Code : N/A
Frame : 182TC
Enclosure : Totally
Enclosed Fan Cooled
Overload Protector : No
Ambient Temperature : 40 °C
Drive End Bearing Size : 6207
Opp Drive End Bearing Size : 6205
UL : Recognized
CSA : N CE : N IP Code : 43
Technical Specifications
Electrical Type : AC Permament Magnet
Starting Method : Inverter Only
Poles : 6
Rotation : Reversible
Mounting : Rigid Base Motor
Orientation : Horizontal
Drive End Bearing : Ball
Opp Drive End Bearing : Ball
Frame Material : Rolled Steel
Shaft Type : T
Overall Length : 16.42 in
Frame Length : 8.00 in
Shaft Diameter : 1 1 in
Shaft Extension : 2.62 in
Assembly/Box Mounting : F1 ONLY
UPC : 722856061966
Weight : 116.00 LB
