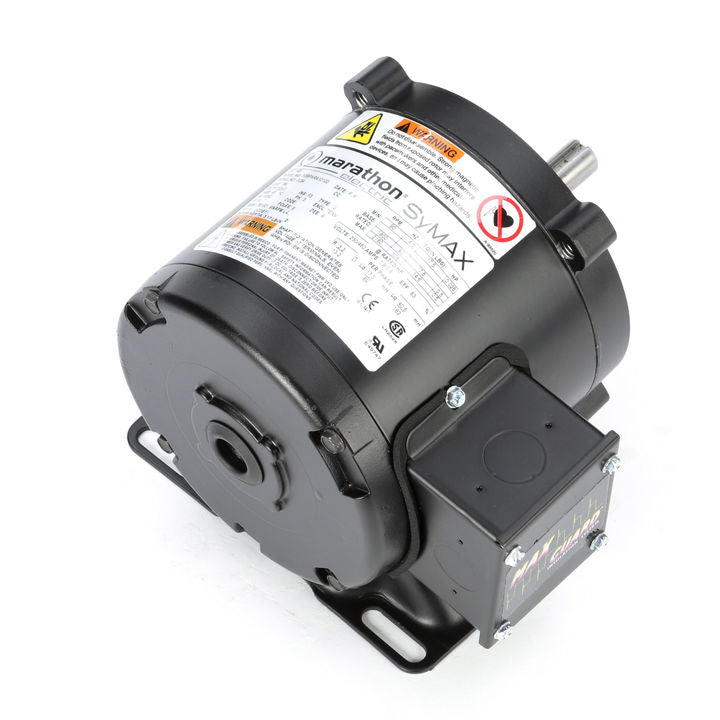

Marathon Electric SY068, 7 1/2 Hp,1800 Rpm, 213TC FR, 230/460 Vac, 3 PH, Permanent Magnet AC Motors, TENV & TEFC, 213TPFRB10230.

SY068, 7 1/2 Hp,1800 Rpm, 213TC FR, 230/460 Vac, 3 PH, Permanent Magnet AC Motors, TENV & TEFC, 213TPFRB10230.

Engineering Data

Output HP :7.50 HP
Output KW :5.6 kW
Frequency :90 Hz
Voltage :230/460 V
Current :16.6/8.3 A
Speed :1800 RPM
Service Factor :1
Phase :3
Efficiency :94.1 %
Duty :Continuous
Insulation Class :F
Design Code :No Design Code
KVA Code :N/A
Frame :213TC
Enclosure :Totally Enclosed Fan Cooled
Overload Protector :No
Ambient Temperature :40 °C
Drive End Bearing Size :6309
Opp Drive End Bearing Size :6206
UL :Recognized
CSA :Y
CE :NIP Code :43
Technical Specifications
Electrical Type :AC Permament Magnet
Starting Method :Inverter Only
Poles :6
Rotation :Reversible
Mounting :Bolt-on Base
Motor Orientation :Horizontal
Drive End Bearing :Ball
Opp Drive End Bearing :Ball
Frame Material :Rolled Steel
Shaft Type :T
Overall Length :19.47 in
Frame Length :9.65 in
Shaft Diameter :1 3 in
Shaft Extension :3.12 in
