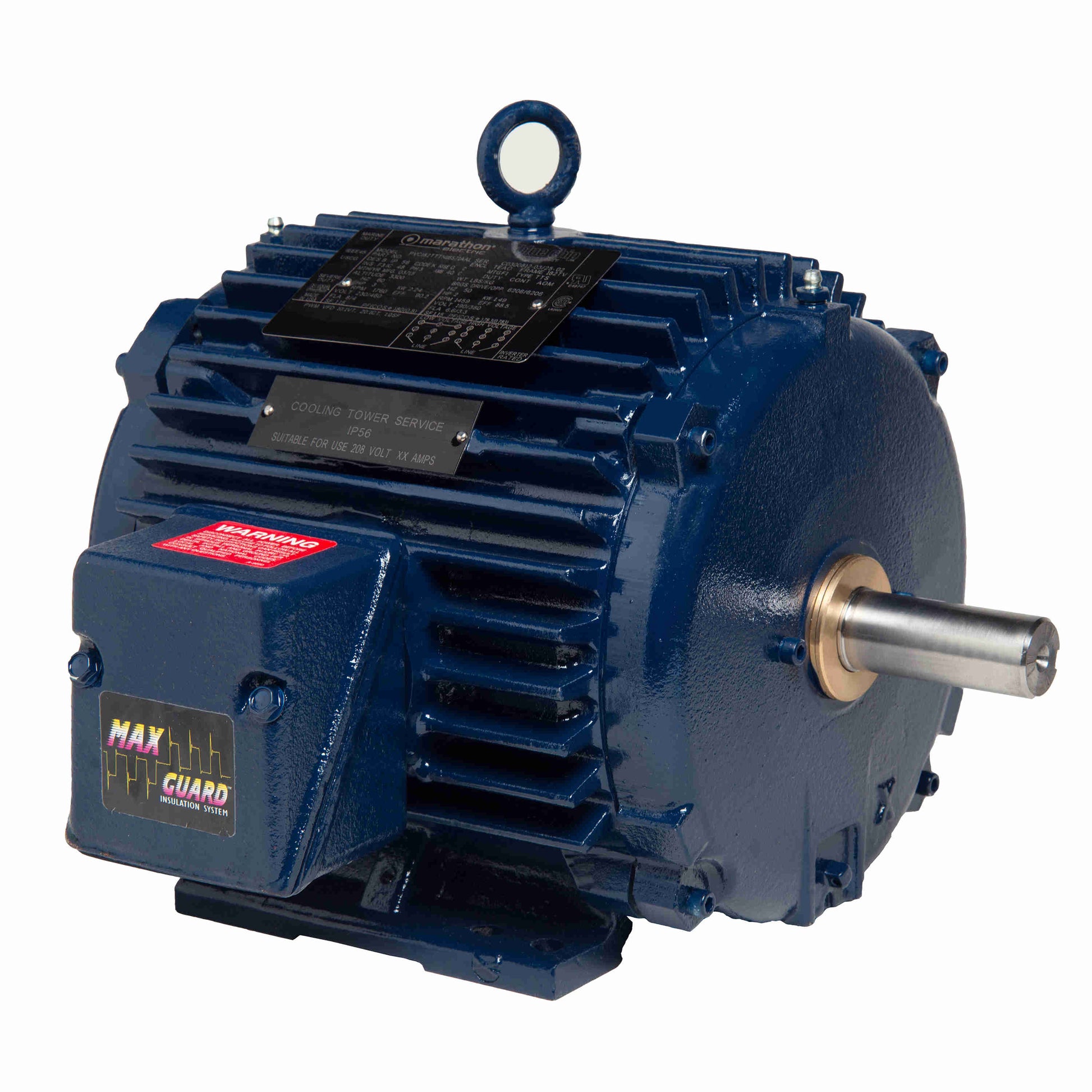

Marathon Electric U1869A, 7 1/2 Hp, 1800 Rpm, 213TV, 230/460 V, 3 PH, TEAO, Rigid Base, Cooling Tower, Severe Duty Motors, 213TTTND16539.

U1869A, 7 1/2 Hp, 1800 Rpm, 213TV, 230/460 V, 3 PH, TEAO, Rigid Base, Cooling Tower, Severe Duty Motors, 213TTTND16539.

Engineering Data

Output HP : 7.50 HP
Output KW : 5.6 kW
Frequency : 60 Hz
Voltage : 230/460 V
Current : 19.2/9.6 A
Speed : 1765 RPM
Service Factor : 1.15
Phase : 3
Efficiency : 91.7 %
Duty : Continuous
Insulation Class : F
Design Code : B
KVA Code : H
Frame : 213TV
Enclosure : Totally Enclosed Air Over
Overload Protector : No
Ambient Temperature : 40 °C
Drive End Bearing Size : 6307
Opp Drive End Bearing Size : 6208
UL : Recognized
CSA : Y CE : Y IP Code : 55
Technical Specifications
Electrical Type : Squirrel Cage Inverter Rated
Starting Method : Line Or Inverter
Poles : 4
Rotation : Reversible
Mounting : Rigid Base
Motor Orientation : Horizontal Or Up Or Down
Drive End Bearing : Ball
Opp Drive End Bearing : Ball
Frame Material : Cast Iron
Shaft Type : T
Overall Length : 17.51 in
Frame Length : 9.12 in
Shaft Diameter : 1.375 i
Shaft Extension : 3.38 in
Assembly/Box Mounting : F1/F2 CAPABLE
