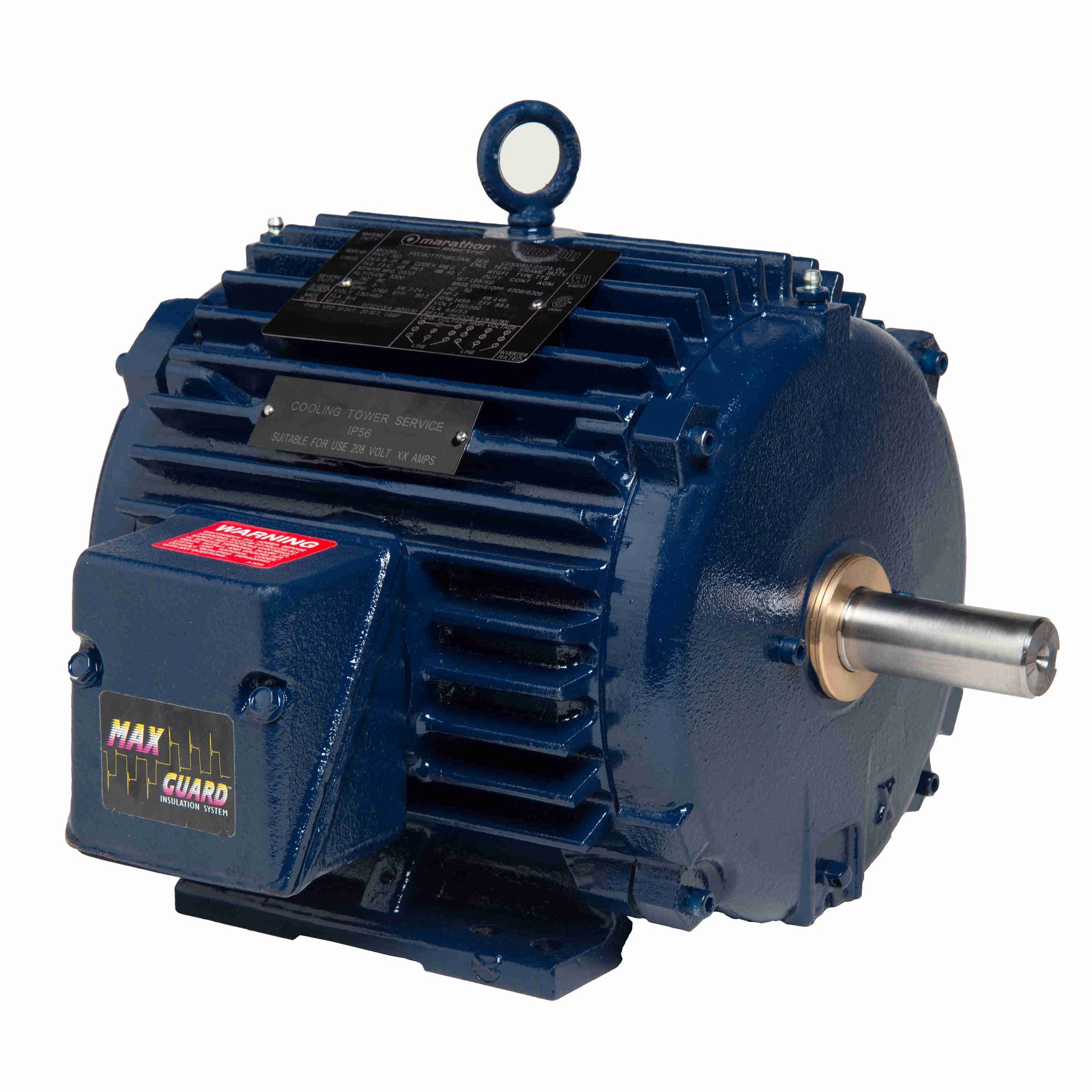

Marathon Electric U1870A, 10 Hp, 1800 Rpm, 215TV, 230/460 V, 3 PH, TEAO, Rigid Base, Cooling Tower, Severe Duty Motors, 215TTTND16541.

U1870A, 10 Hp, 1800 Rpm, 215TV, 230/460 V, 3 PH, TEAO, Rigid Base, Cooling Tower, Severe Duty Motors, 215TTTND16541.

Engineering Data

Output HP : 10 HP
Output KW : 7.5 kW
Frequency : 60 Hz
Voltage : 230/460 V
Current : 26.6/13.3 A
Speed : 1765 RPM
Service Factor : 1.15
Phase : 3
Efficiency : 91.7 %
Duty : Continuous
Insulation Class : F
Design Code : B
KVA Code : H
Frame : 215TV
Enclosure : Totally Enclosed Air Over
Overload Protector : No
Ambient Temperature : 40 °C
Drive End Bearing Size : 6307
Opp Drive End Bearing Size : 6208
UL : Recognized
CSA : Y CE : Y IP Code : 56
Technical Specifications
Electrical Type : Squirrel Cage Inverter Rated
Starting Method : Line Or Inverter
Poles : 4
Rotation : Reversible
Mounting : Rigid Base
Motor Orientation : Horizontal Or Up Or Down
Drive End Bearing : Ball
Opp Drive End Bearing : Ball
Frame Material : Cast Iron
Shaft Type : T
Overall Length : 20.51 in
Frame Length : 12.12 in
Shaft Diameter : 1.375 in
Shaft Extension : 3.38 in
Assembly/Box Mounting : F1/F2 CAPABLE
