Baldor Electric VEM4104T, 30 Hp, 1800 Rpm, 286TC FR, 230/460 Vac, 3 PH, TEFC, Footless, General Purpose Motor

VEM4104T, 30 Hp, 1800 Rpm, 286TC FR, 230/460 Vac, 3 PH, TEFC, Footless, General Purpose Motor.

Engineering Data

Output 30.000 hp
Phase 3
Synchronous Speed 1,800 rpm
Frequency
60 Hz
Voltage 230 V
460 V
Frame Material Iron
Frame 286TC
XP Class and Group NONE
XP Division
Not Applicable
Brand
Baldor-Reliance
Agency Approvals
CSA
CSA EEV
UR
Ambient Temperature 40 °C
Auxillary Box
No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator
No Mounting
Bearing Grease Type
POLYREX EM (-20F +300F)
Blower
None
Current
78.0 A @ 208 V
76.0 A @ 230 V
38.0 A @ 460 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load
93.6%
Electrically Isolated Bearing
Not Electrically Isolated
Feedback Device
No feedback
Front Face Code
Standard
Front Shaft Indicator None
Heater Indicator No heater
High Voltage Full Load Amps 38.0 A
Insulation Class F
Inverter Code
Inverter ready
KVA Code J
Lifting Lugs
Standard Lifting Lugs
Locked Bearing Indicator
Locked Bearing
Motor Lead Exit
KO Box
Motor Lead Quantity/Wire Size
9 @ 8 AWG
Motor Lead Termination
Flying Leads
Motor Standards
NEMA
Motor Type
1056M
Number of Poles 4

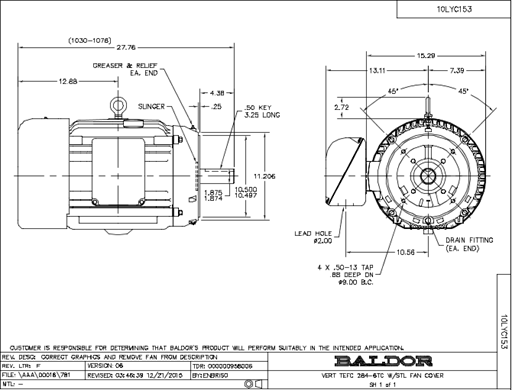

Overall Length 27.76 in
Power Factor 80
Product Family
General Purpose
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 1.875 in
Shaft Extension Location
Pulley End
Shaft Ground Indicator
No Shaft Grounding
Shaft Rotation
Reversible
Shaft Slinger Indicator
Shaft Slinger
Speed 1,760 rpm
Speed Code
Single Speed
Starting Method
Direct on line
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator
No Vibration Sensor
Winding Thermal 1 None
Winding Thermal 2 None
