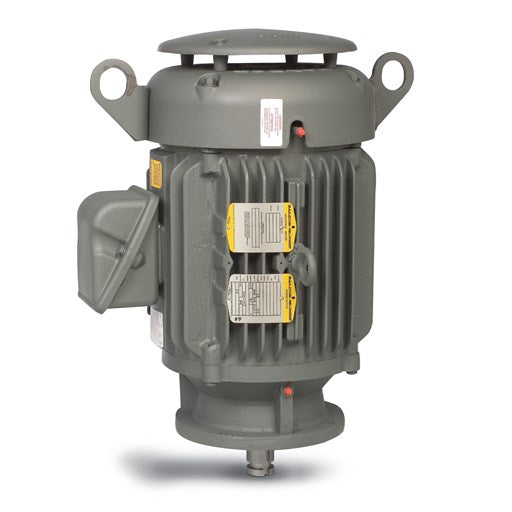

VLCP3770T, 7 1/2 Hp, 1800 RPM, 213LP FR, 208-230/460 Vac, 3 PH, TEFC, Medium Thrust, Standard Efficiency, P-Base Vertical Solid Shaft Pump Motor.

*** This motor has been replaced by model # VLECP3770***
VLCP3770T, 7 1/2 Hp, 1800 RPM, 213LP FR, 208-230/460 Vac, 3 PH, TEFC, Medium Thrust, Standard Efficiency, P-Base Vertical Solid Shaft Pump Motor.

Engineering Data

Output 7.500 hp

Phase 3

Synchronous Speed 1,800 rpm

Frequency 60 Hz

Voltage 460 V
230 V
208 V

Enclosure TEFC

Frame Material Iron

Frame 213LP

XP Division Not Applicable

Brand Baldor-Reliance

Agency Approvals CSA
UR

Ambient Temperature 40 °C

Auxillary Box No Auxillary Box

Auxillary Box Lead Termination None

Base Indicator No Mounting

Bearing Grease Type POLYREX EM (-20F +300F)

Blower None

Current 22.3 A @ 208 V
20.6 A @ 230 V
10.3 A @ 460 V

Design Code A

Drip Cover Drip Cover

Duty Rating CONT

Efficiency @ 100% Load 89.5%

Electrically Isolated Bearing No electrically isolated

Feedback Device No feedback

Front Face Code Drip Cover Mounting

Front Shaft Indicator None

Heater Indicator No heater

High Voltage Full Load Amps 10.3 A

Insulation Class F

Inverter Code Not inverter

KVA Code J

Lifting Lugs Vertical Lifting Lugs

Locked Bearing Indicator Locked Bearing

Motor Lead Exit KO Box

Motor Lead Quantity/Wire Size 9 @ 14 AWG

Motor Lead Termination Flying Leads

Motor Standards NEMA

Motor Type 0729M

Mounting Arrangement F1

Number of Poles 4

Overall Length 22.51 in

Power Factor 76

Product Family Chemical Processing (not DC)

Pulley End Bearing Type Thrust Bearing

Pulley Face Code P-Base

Pulley Shaft Indicator P-Base Groove & Key

Rodent Screen No Rodent Screen

Service Factor 1.15

Shaft Diameter 1.625 in

Shaft Extension Location Pulley End

Shaft Ground Indicator No Shaft Grounding

Shaft Rotation Reversible

Shaft Slinger Indicator No Slinger

Speed 1,765 rpm

Speed Code Single Speed

Starting Method DOL

Thermal Device - Bearing None

Thermal Device - Winding None

Vibration Sensor Indicator No Vibration Sensor

Winding Thermal 1 None

Winding Thermal 2 None
