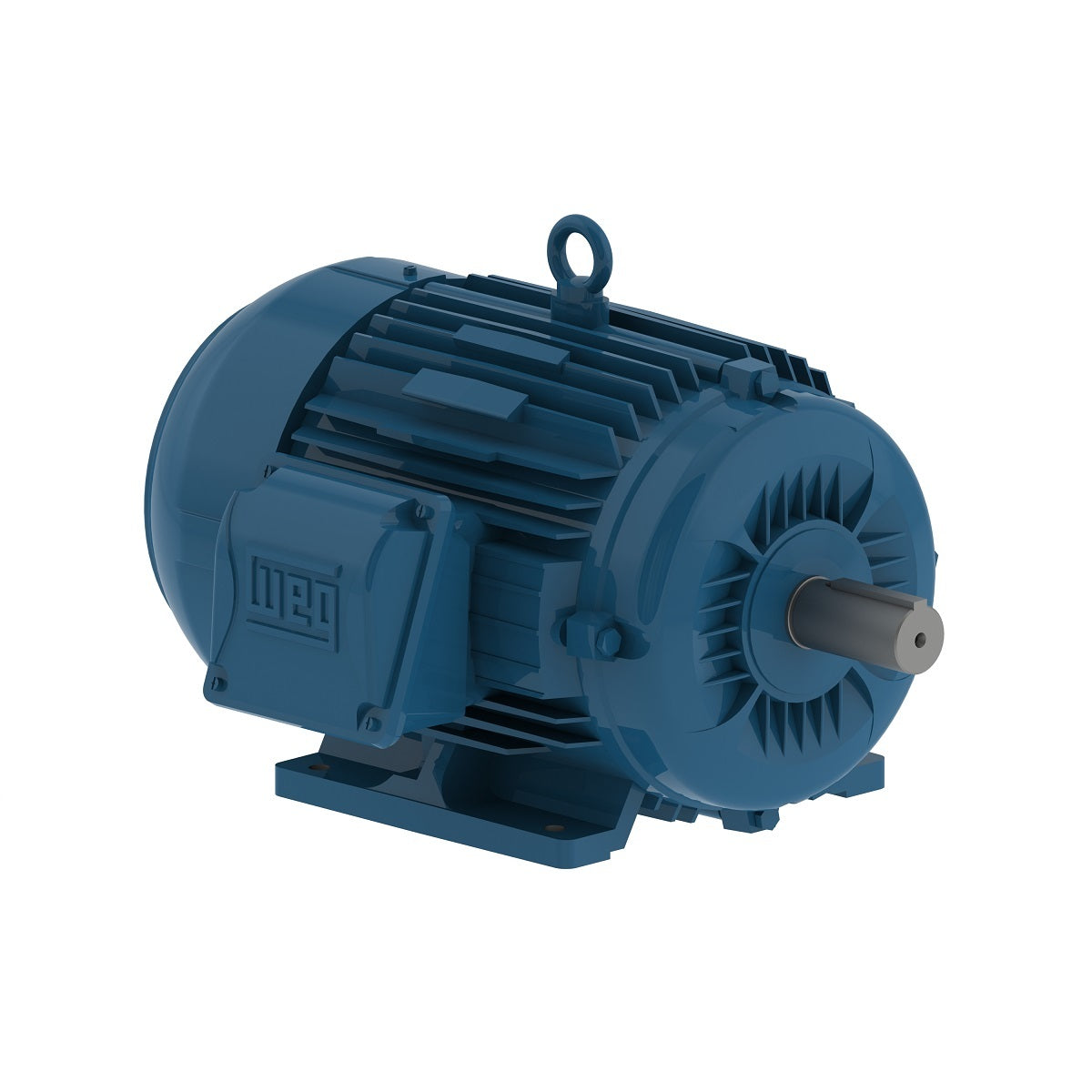

Weg Electric 00109ET3H182T-W22, 1 Hp, 900 Rpm, 182/4T FR, 575 Vac, 1 PH, TEFC, Foot-mounted, General Purpose Motor.

00109ET3H182T-W22, 1 Hp, 900 Rpm, 182/4T FR, 575 Vac, 1 PH, TEFC, Foot-mounted, General Purpose Motor.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 575 V
Number of poles 8
Degree of Protection IP55
Synchronous speed 900 rpm
Output rating 1 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC
