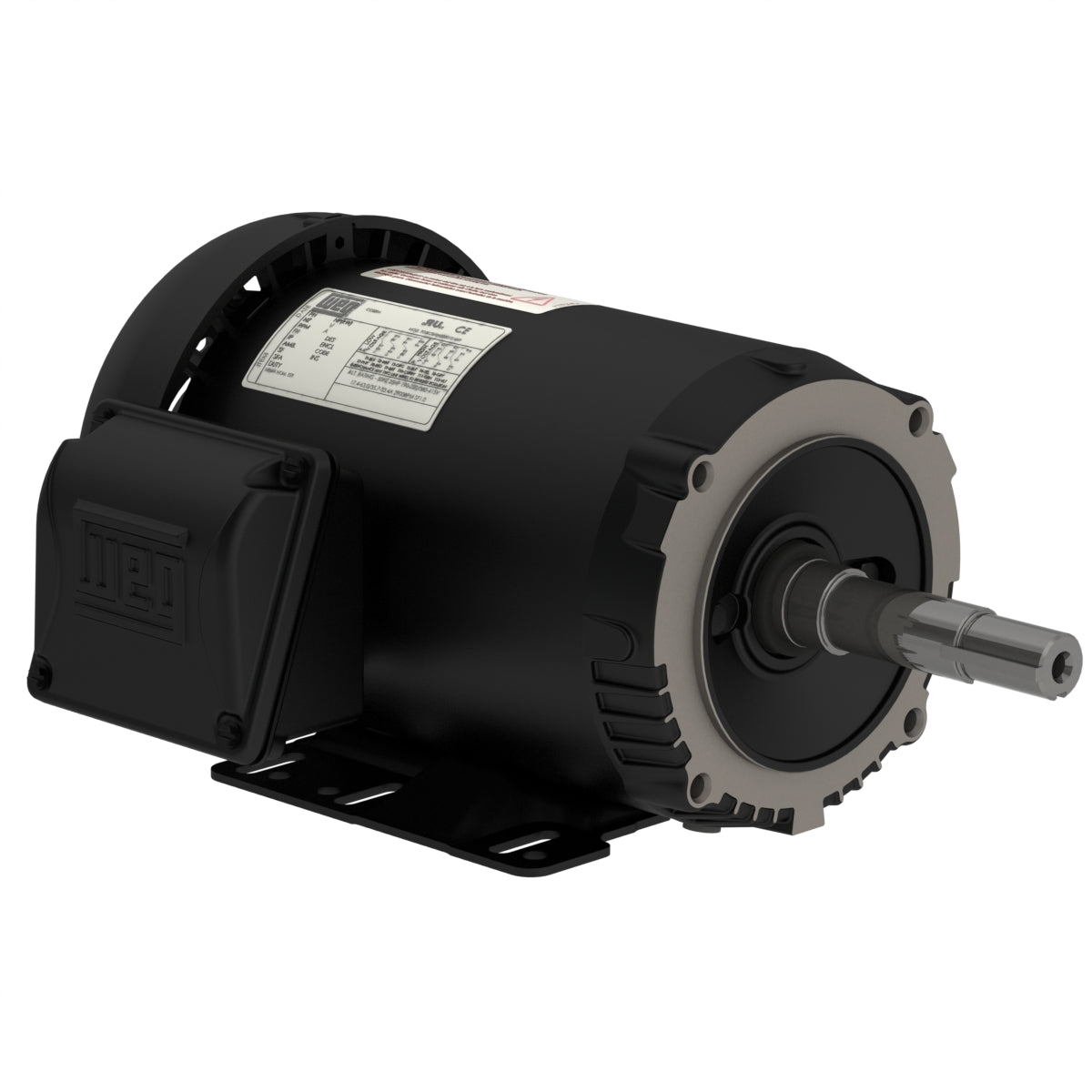

Weg Electric 00112ET3E145JM-S, 1 Hp, 1200 Rpm, 143/5JM FR, 230/460//190-220/380-415 Vac, 3 PH, TEFC, Foot-mounted, General Purpose Motor.

00112ET3E145JM-S, 1 Hp, 1200 Rpm, 143/5JM FR, 230/460//190-220/380-415 Vac, 3 PH, TEFC, Foot-mounted, General Purpose Motor.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 230/460//190-220/380-415 V
Number of poles 6
Degree of Protection IP55
Synchronous speed 1200 rpm
Output rating 1 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 143/5JM
Output 1 HP (0.75 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1145 rpm
Slip 4.58 %
Rated voltage 230/460 V
Rated current 3.16/1.58 A
L. R. Amperes 18.3/9.16 A
LRC 5.8x(Code J)
No load current 2.03/1.01 A
Rated torque 4.59 ft.lb
Locked rotor torque 229 %
Breakdown torque 280 %
Locked rotor time 55s (cold) 31s (hot)
Moment of inertia (J) 0.1597 sq.ft.lb
Design B
Insulation Class F
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 50.0 dB(A)
