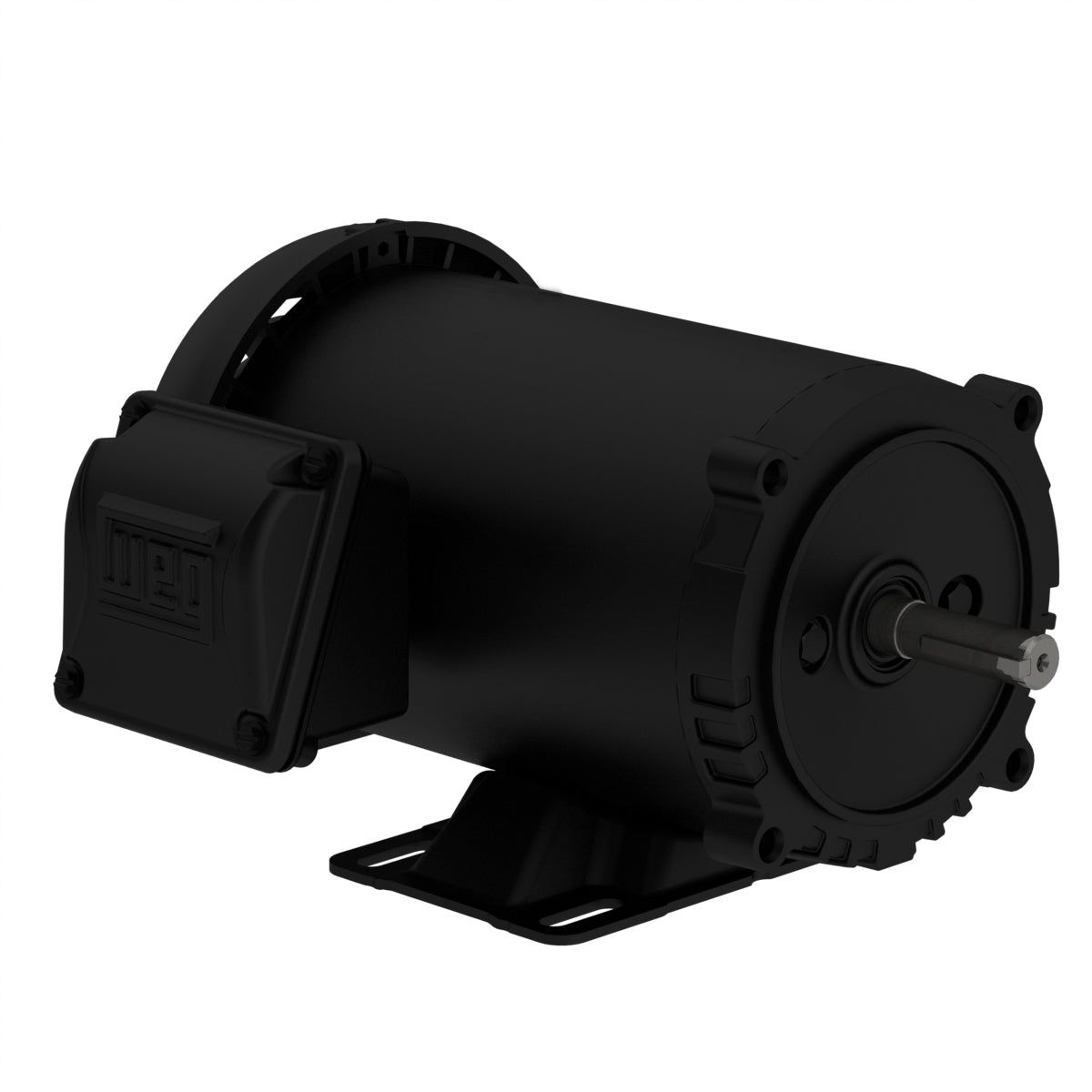

Weg Electric 00112ET3E56-S, 1 Hp, 1200 Rpm, 56H FR, 230/460//190-220/380-415 Vac, 1 PH, TEFC, Foot-mounted, General Purpose Motor.

00112ET3E56-S, 1 Hp, 1200 Rpm, 56H FR, 230/460//190-220/380-415 Vac, 1 PH, TEFC, Foot-mounted, General Purpose Motor.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 230/460//190-220/380-415 V
Number of poles 6
Degree of Protection IP55
Synchronous speed 1200 rpm
Output rating 1 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC
