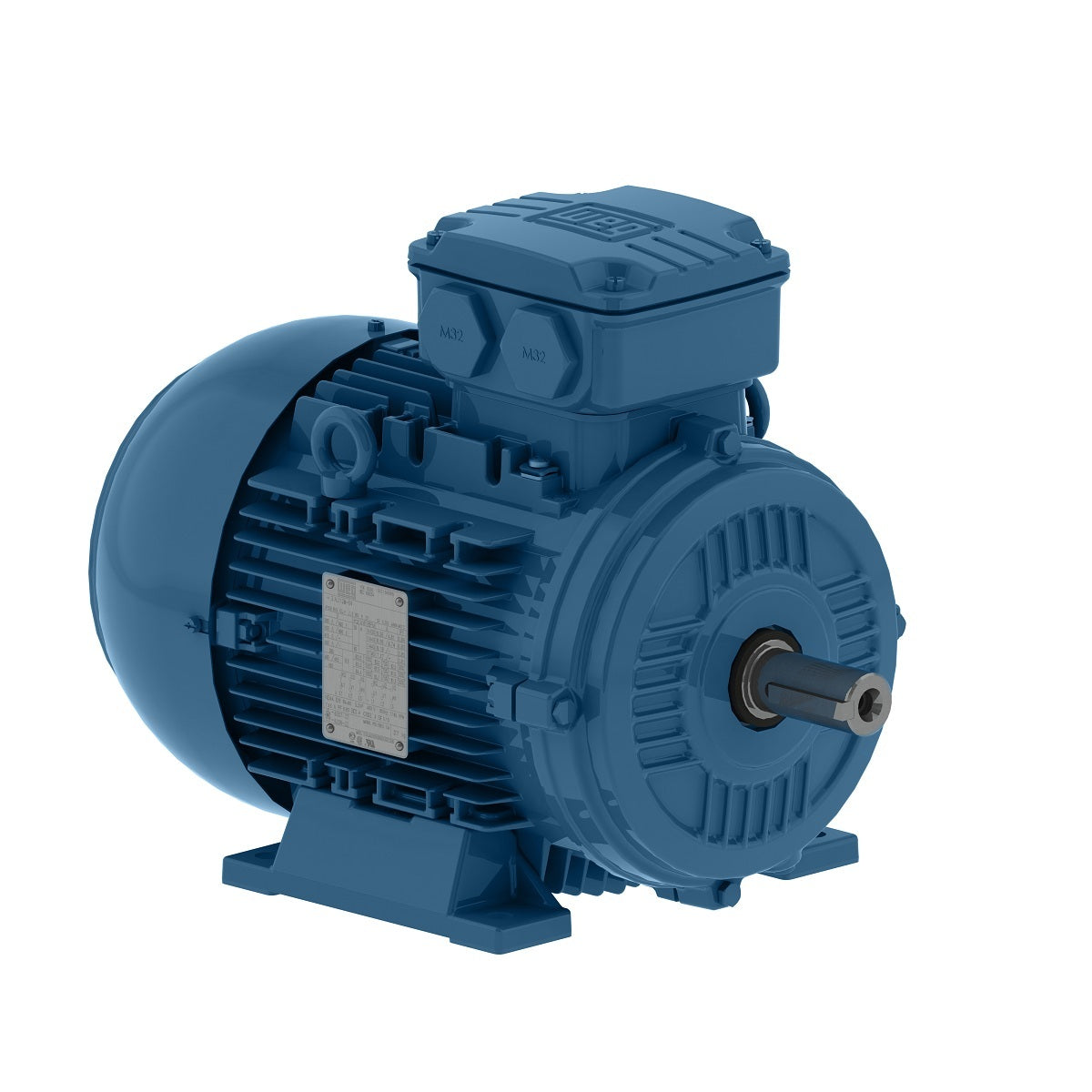

Weg Electric 00112ET3EAL100L-W22, 1 1/2 Hp, L100L Frame, 1200 RPM, 190/380//230/460 Vac, TEFC, 3 PH, Foot-mounted, Rolled Steel NEMA Premium Efficiency.

00112ET3EAL100L-W22, 1 1/2 Hp, L100L Frame, 1200 RPM, 190/380//230/460 Vac, TEFC, 3 PH, Foot-mounted, Rolled Steel NEMA Premium Efficiency.

Engineering Data

With aluminum frame and removable feet, this motor is able to provide great flexibility and facilitate the change of configuration without requiring additional machining or modifications. Its terminal box can rotate every 90 degrees, allowing the connection of the motor cables on any side. Furthermore, the W21 Multimounting is totally interchangeable with the cast iron motors.

Product features
Standard IEC 60034-1
Frequency 50 Hz
Voltage 190/380//230/460 V
Number of poles 6
Degree of Protection IP55
Synchronous speed 1000 rpm
Output rating 1.1 kW
Mounting Foot-mounted
Flange Without
Mounting B3T
Terminal box¹ Top
Enclosure IC411 - TEFC

Frame L100L
Output 1.1 kW (1.5 HP)
Number of Poles 6
Frequency 50 Hz
Rated speed 950 rpm
Slip 5.00 %
Rated voltage 190/380 V
Rated current 5.68/2.84 A
L. R. Amperes 29.5/14.8 A
LRC 5.2
No load current 3.20/1.60 A
Rated torque 1.13 kgfm
Locked rotor torque 220 %
Breakdown torque 250 %
Locked rotor time 90s (cold) 50s (hot)
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3T
Rotation¹ Both (CW and CCW)
Noise level² 44.0 dB(A)
