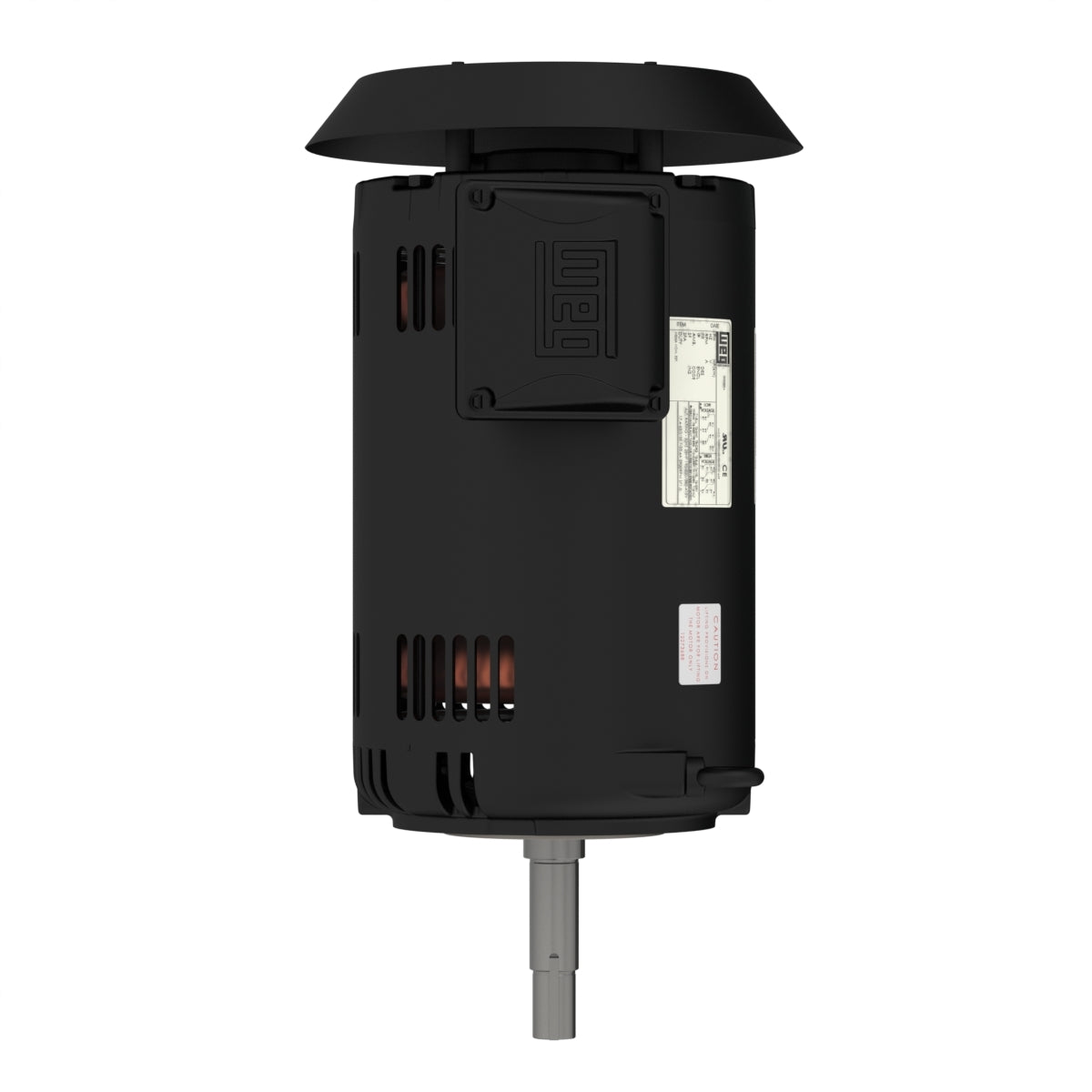

Weg Electric 00112ET3VR145TC-S, 1 Hp, 1200 Rpm, 143/5TC Frame, 200/400 Vac, TEFC, 3 PH, Footless, Rolled Steel NEMA Premium Efficiency.

00112ET3VR145TC-S, 1 Hp, 1200 Rpm, 143/5TC Frame, 200/400 Vac, TEFC, 3 PH, Footless, Rolled Steel NEMA Premium Efficiency.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 200/400 V
Number of poles 6
Degree of Protection IP55
Synchronous speed 1200 rpm
Output rating 1 HP
Mounting Footless
Flange C
Mounting W-6
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 143/5TC
Output 1 HP (0.75 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1145 rpm
Slip 4.58 %
Rated voltage 200/400 V
Rated current 3.63/1.82 A
L. R. Amperes 21.1/10.5 A
LRC 5.8x(Code J)
No load current 2.33/1.16 A
Rated torque 4.59 ft.lb
Locked rotor torque 229 %
Breakdown torque 280 %
Locked rotor time 55s (cold) 31s (hot)
Moment of inertia (J) 0.1597 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 50.0 dB(A)
