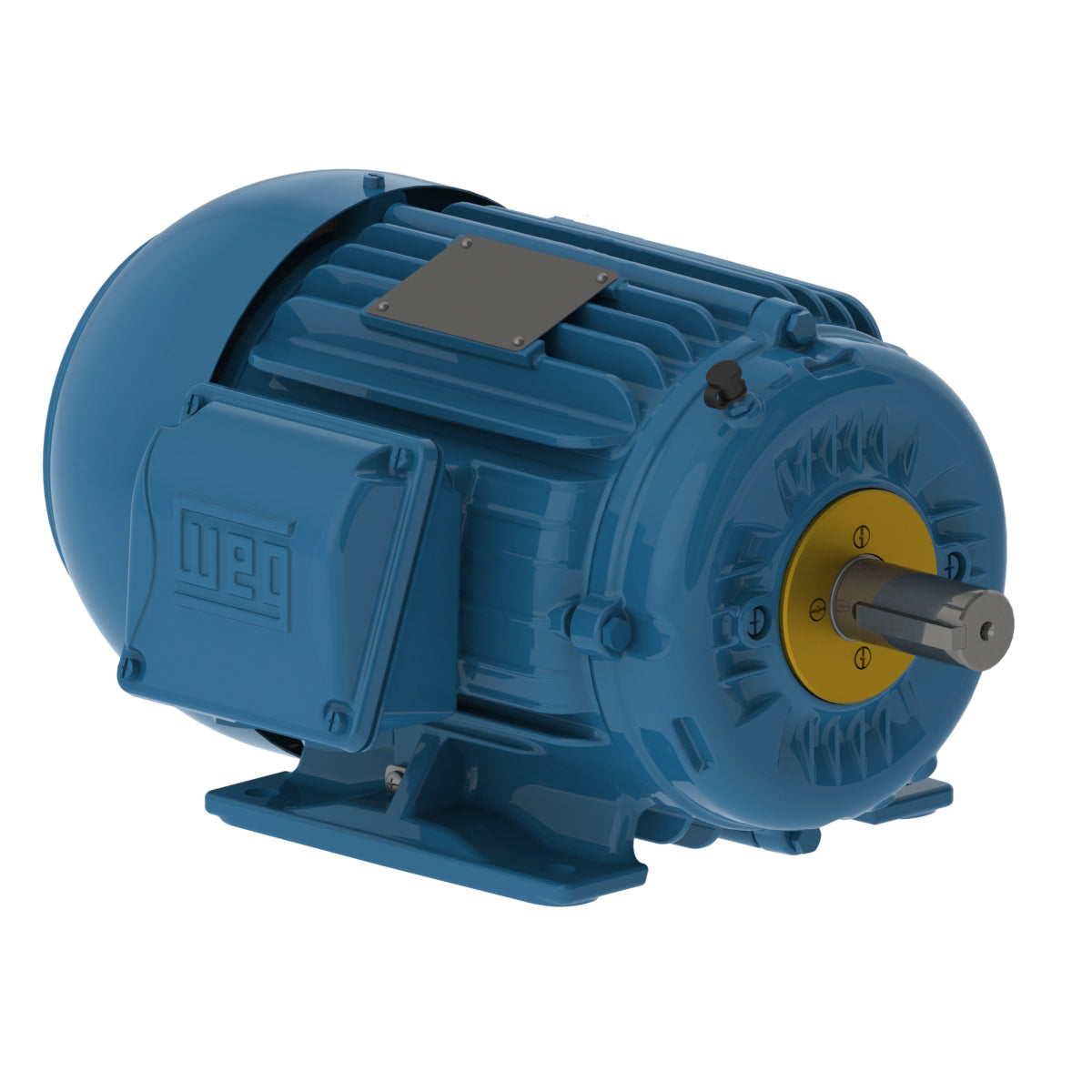

Weg Electric 00112ST3QIE145TC-W22,1 Hp, 1200 Rpm, 143/5TC FR, 575 Vac, 1 PH, TEFC, Foot-mounted, General Purpose Motor.

00112ST3QIE145TC-W22,1 Hp, 1200 Rpm, 143/5TC FR, 575 Vac, 1 PH, TEFC, Foot-mounted, General Purpose Motor.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 575 V
Number of poles 6
Degree of Protection IP55
Synchronous speed 1200 rpm
Output rating 1 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC
