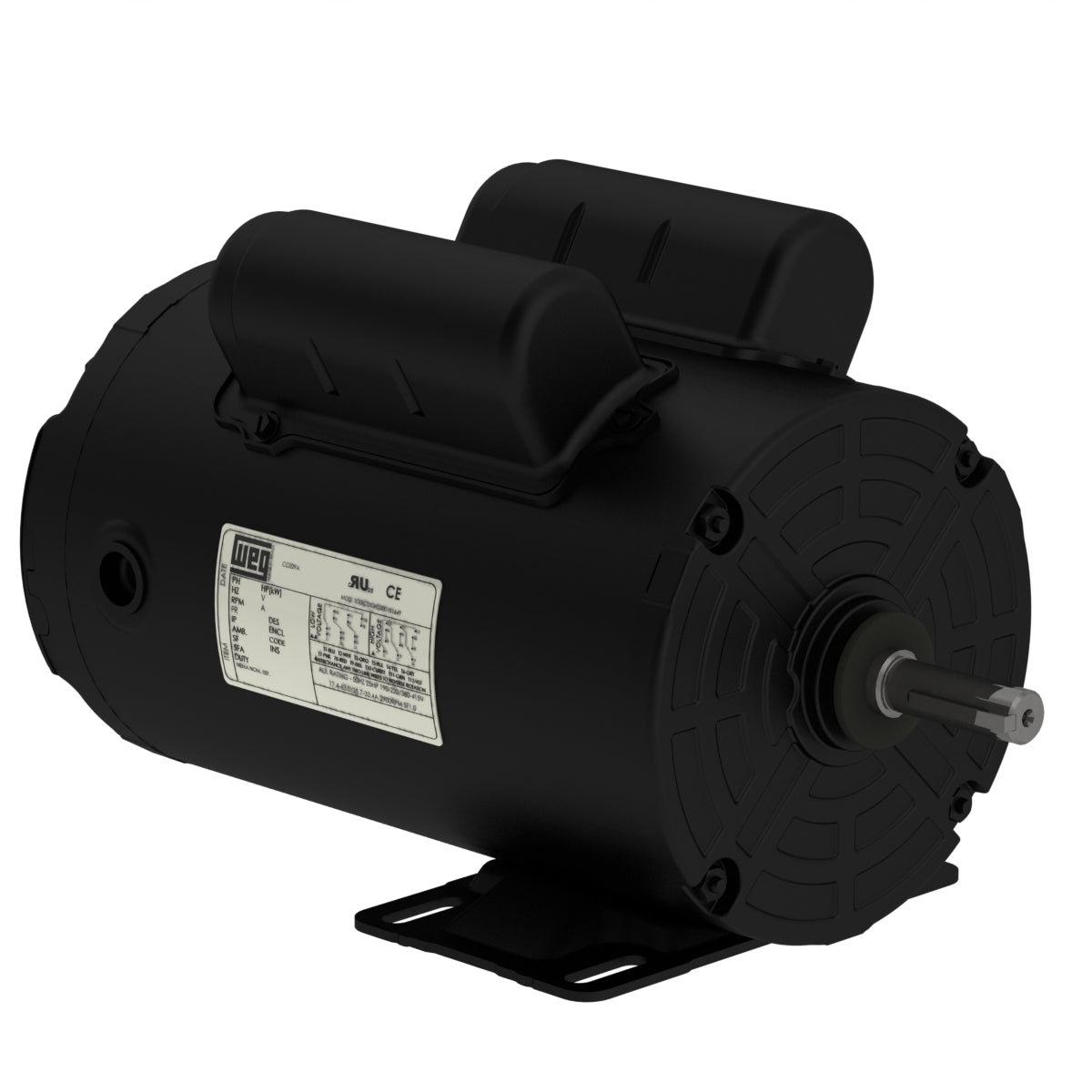

Weg Electric 00118AS1BPF56-S, 1 Hp, 1800 Rpm, 56 FR, 115/208-230 Vac, 1 PH, TEAO, Foot-mounted, Rolled Steel Motor.

00118AS1BPF56-S, 1 Hp, 1800 Rpm, 56 FR, 115/208-230 Vac, 1 PH, TEAO, Foot-mounted, Rolled Steel Motor.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 115/208-230 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 1 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Without Terminal Box
Enclosure IC410 - TEAO

Frame 56
Output 1 HP (0.75 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1730 rpm
Slip 3.89 %
Rated voltage 115/208-230 V
Rated current 13.5/7.52-6.75 A
L. R. Amperes 90.5/50.4-45.2 A
LRC 6.7x(Code M)
No load current 9.60/4.14-4.80 A
Rated torque 3.04 ft.lb
Locked rotor torque 280 %
Breakdown torque 270 %
Locked rotor time 14s (cold) 8s (hot)
Design L
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
