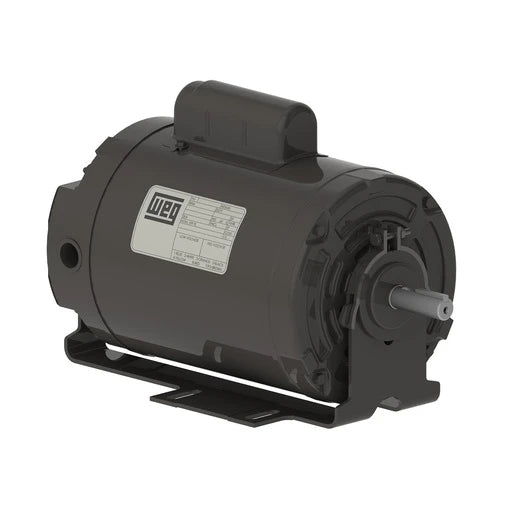

Weg Electric 00118AS1BRBPF56-S, 1 Hp, 1800 Rpm, 56 FR, 115/208-230 Vac, 1 PH, TEAO, Foot-Mounted, 15412616

Weg Electric 00118AS1BRBPF56-S, 1 Hp, 1800 Rpm, 56 FR, 115/208-230 Vac, 1 PH, TEAO, Foot-Mounted, 15412616

$387.15
$387.15
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Weg Electric 00118AS1BRBPF56-S, 1 Hp, 1800 Rpm, 56 FR, 115/208-230 Vac, 1 PH, TEAO, Foot-Mounted, 15412616

Specifications

Manufacturer Part Number 00118AS1BRBPF56-S
Manufacturer WEG Electric
Family Series WEG Electric Motors
Description MOTOR 1HP 4P 56 WCF2 RO S SI PH
Type Fractional HP
Horsepower 1 hp
Kilowatts 0.56 kW
Speed 1,800 RPM
Number of Poles 4
Phase 1
Frequency 60 Hz
NEMA Frame 56
AC Voltage 115 VAC, 208-230 VAC
Nominal Voltage 120 VAC, 208 VAC, 240 VAC
Enclosure Totally Enclosed Air Over
Mounting Foot Mount
Current Rating 5.63 A
Service Factor 1.25
Inverter Duty No
Motor Type Foot Mount
Composition Rolled Steel
Bearing Type Double Shielded
Shaft Diameter 0.63 "
Overload Protection Automatic
Length 12.01 "
Approvals cCSAus
Net Weight 36.729 lbs
Gross Weight 36.729 lbs
