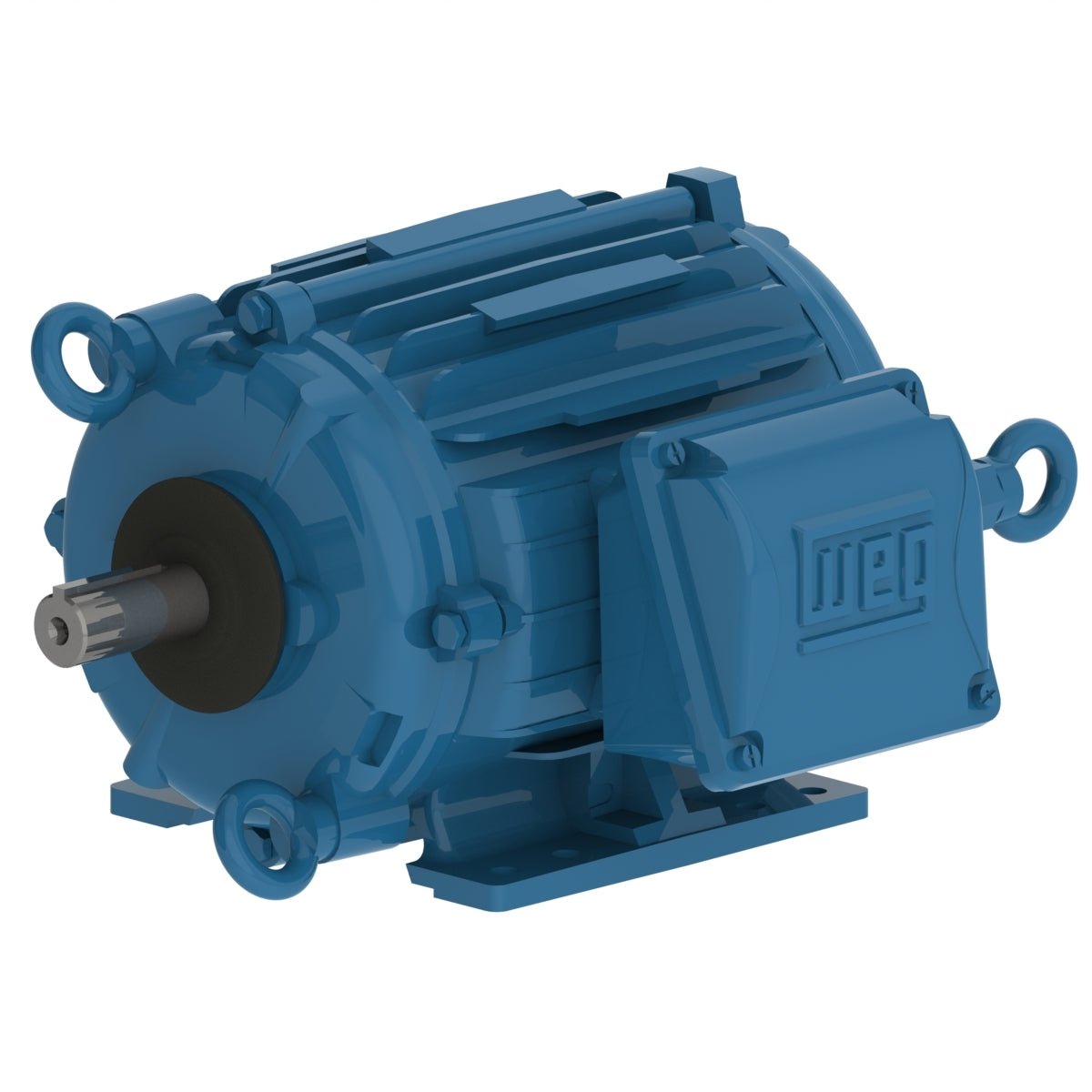

Weg Electric 00118AT3PCT143T-W22, 1 Hp, 1800 Rpm, 143T FR, 200 Vac, 1 PH, TEFC, Foot-mounted, General Purpose Motor.

00118AT3PCT143T-W22, 1 Hp, 1800 Rpm, 143T FR, 200 Vac, 1 PH, TEFC, Foot-mounted, General Purpose Motor.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 200 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 1 HP
Mounting Foot-mounted
Flange Without
Mounting F-2
Terminal box¹ Right position
Enclosure IC410 - TEAO
