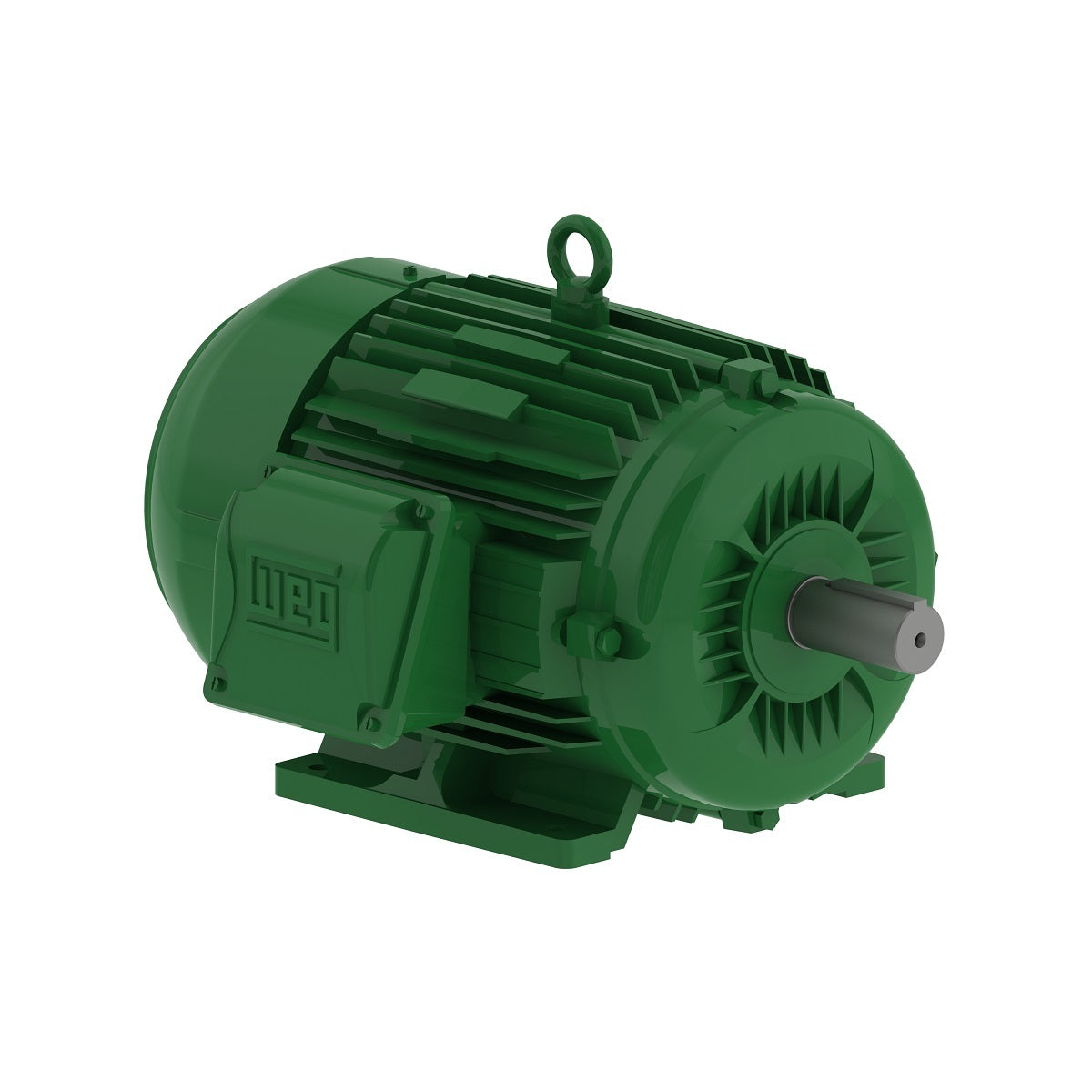

Weg Electric 00118EG3E143T-W22, 1 Hp, 1800 Rpm, 143T/5 FR, 208-230/460//380 Vac, 1 PH, TEFC, Foot-mounted, General Purpose Motor.

00118EG3E143T-W22, 1 Hp, 1800 Rpm, 143T/5 FR, 208-230/460//380 Vac, 1 PH, TEFC, Foot-mounted, General Purpose Motor.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 208-230/460//380 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 1 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC
