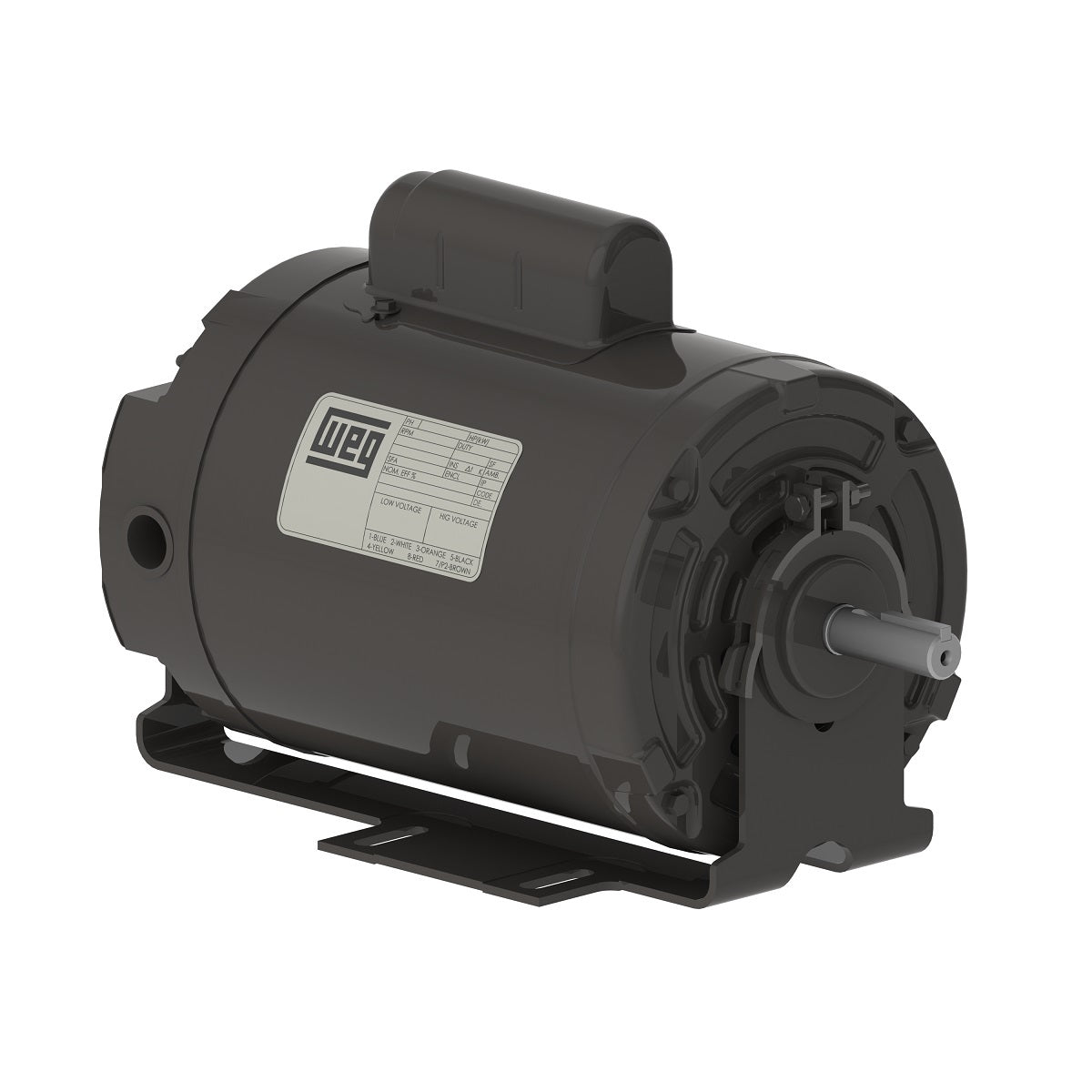

Weg Electric 00118ES1BRBPFD56, 1 Hp, 1800 Rpm, D56 FR, 115/208-230 Vac, 1 PH, TEAO, Resilient Base, General Purpose Motor.

00118ES1BRBPFD56, 1 Hp, 1800 Rpm, D56 FR, 115/208-230 Vac, 1 PH, TEAO, Resilient Base, General Purpose Motor.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 115/208-230 V
Number of poles 4
Degree of Protection IP44
Synchronous speed 1800 rpm
Output rating 1 HP
Mounting Resilient base
Flange Without
Mounting F-1
Terminal box¹ Without Terminal Box
Enclosure IC410 - TEAO
