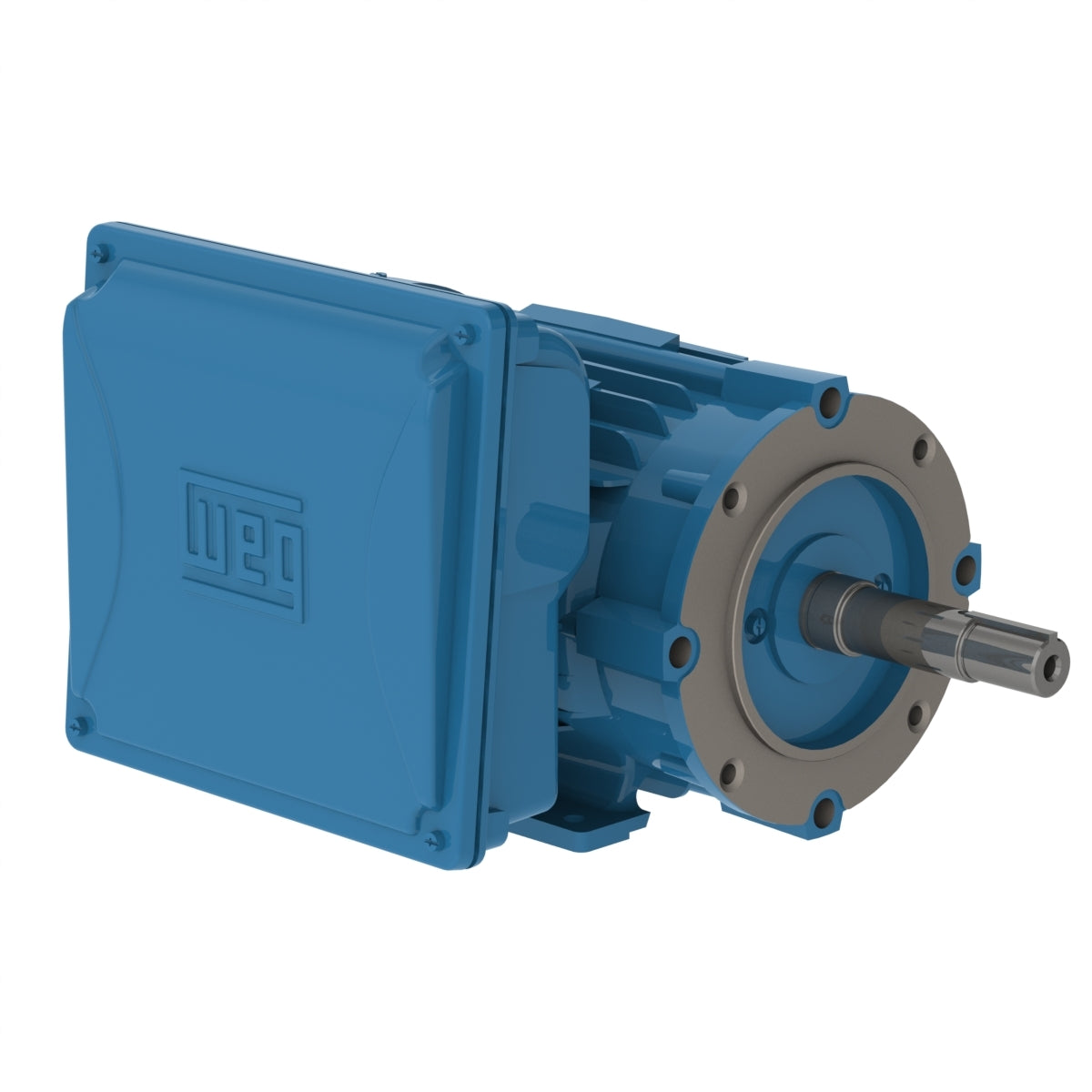

Weg Electric 00118ES1E143JM-W22, 1 Hp, 1800 Rpm, 143/5JM FR, 208-230/460 Vac, 1 PH, TEFC, Foot-mounted, General Purpose Motor.

00118ES1E143JM-W22, 1 Hp, 1800 Rpm, 143/5JM FR, 208-230/460 Vac, 1 PH, TEFC, Foot-mounted, General Purpose Motor.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 208-230/460 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 1 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 143/5JM
Output 1 HP (0.75 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1665 rpm
Slip 7.50 %
Rated voltage 208-230/460 V
Rated current 5.00-5.32/2.66 A
L. R. Amperes 42.0-44.7/22.3 A
LRC 8.4x(Code M)
No load current 2.76-3.20/1.60 A
Rated torque 3.15 ft.lb
Locked rotor torque 270 %
Breakdown torque 300 %
Locked rotor time 12s (cold) 7s (hot)
Moment of inertia (J) 0.1303 sq.ft.lb
Insulation Class F
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 58.0 dB(A)
