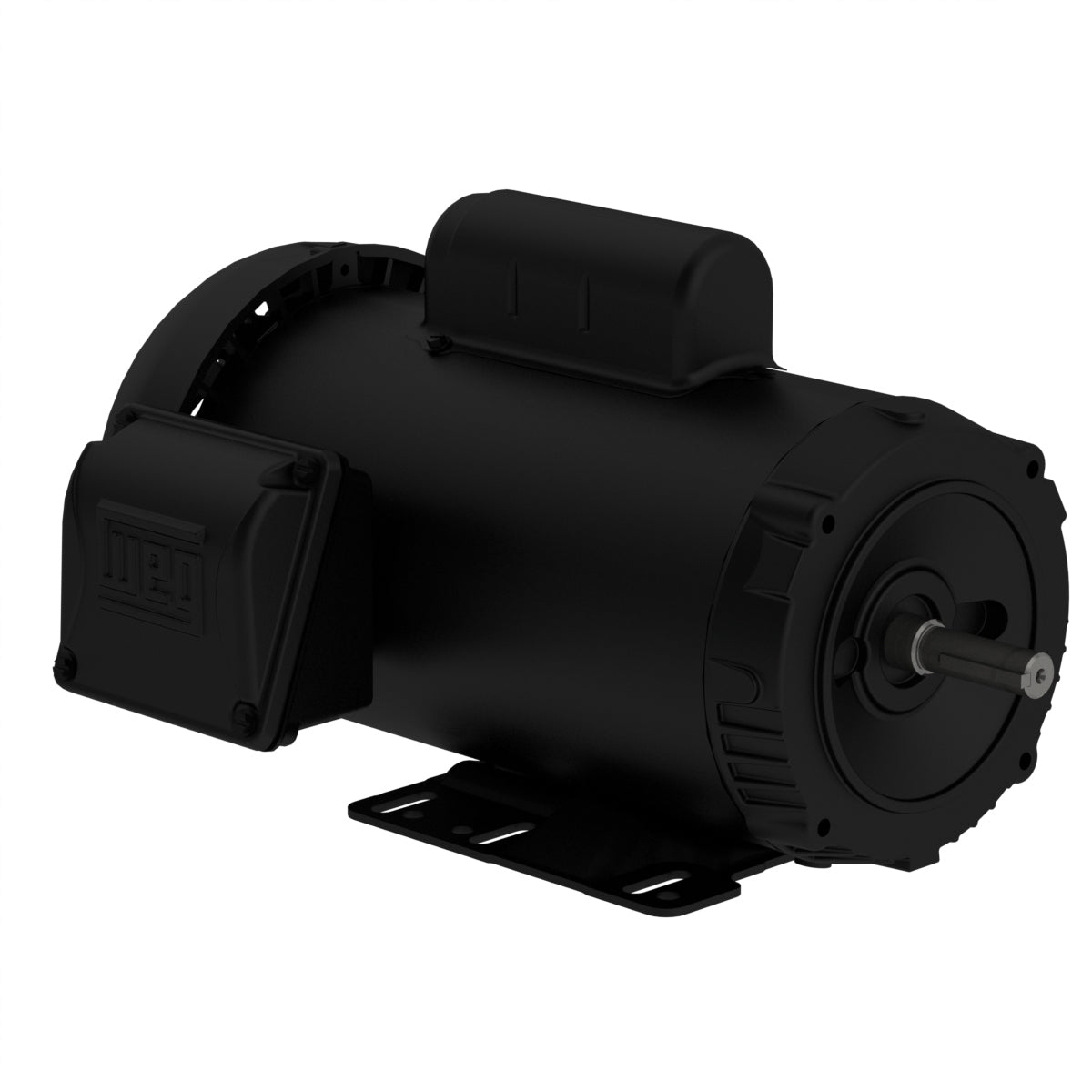

Weg Electric 00118ES1E143T-S, 1 Hp, 1800 Rpm, W56C FR, 208-230/460 Vac, 1 PH, TEFC, Foot-mounted, General Purpose Motor.

00118ES1E143T-S, 1 Hp, 1800 Rpm, W56C FR, 208-230/460 Vac, 1 PH, TEFC, Foot-mounted, General Purpose Motor.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 208-230/460 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 1 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 143/5T
Output 1 HP (0.75 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1745 rpm
Slip 3.06 %
Rated voltage 208-230/460 V
Rated current 7.52-6.80/3.40 A
L. R. Amperes 50.4-45.6/22.8 A
LRC 6.7x(Code M)
No load current 4.14-4.80/2.40 A
Rated torque 3.01 ft.lb
Locked rotor torque 280 %
Breakdown torque 270 %
Locked rotor time 14s (cold) 8s (hot)
Moment of inertia (J) 0.1037 sq.ft.lb
Design L
Insulation Class F
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 54.0 dB(A)
