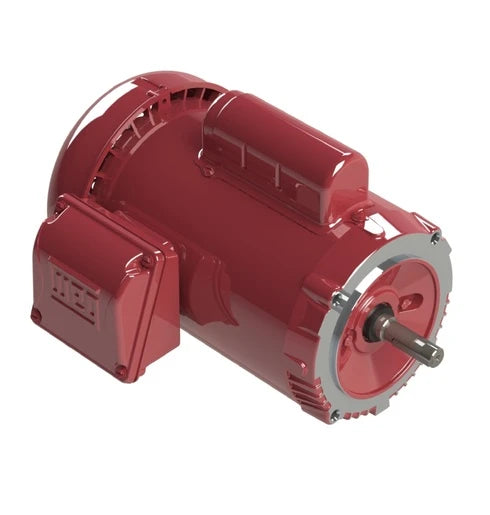

Weg Electric 00118ES1RFD56CFL-S, 1 HP, 56C FR, 1Ph, 115/230 V, 60 Hz, 1800 RPM, TEFC, Footless, ROLLED STEEL, 15329429

Weg Electric 00118ES1RFD56CFL-S, 1 HP, 56C FR, 1Ph, 115/230 V, 60 Hz, 1800 RPM, TEFC, Footless, ROLLED STEEL, 15329429

$380.92
$380.92
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Weg Electric 00118ES1RFD56CFL-S, 1 HP, 56C FR, 1Ph, 115/230 V, 60 Hz, 1800 RPM, TEFC, Footless, ROLLED STEEL, 15329429

SPECIFICATIONS

Frame 56C
Output 1 HP (0.75 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1745 rpm
Slip 3.06 %
Rated voltage 115/230 V
Rated current 13.6/6.80 A
L. R. Amperes 91.1/45.6 A
LRC 6.7x(Code M)
No load current 9.60/4.80 A
Rated torque 3.01 ft.lb
Locked rotor torque 280 %
Breakdown torque 270 %
Locked rotor time 14s (cold) 8s (hot)
Moment of inertia (J) 0.1037 sq.ft.lb
Design L
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Starting Method Direct On Line
Duty Cycle Cont.(S1)
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 54.0 dB(A)
Approx. weight³ 36.0 lb
