Industrial Motors

Weg Electric 00118ET3E56CF3-S, 1 Hp, 1800 Rpm, 56C, 230/460//190-220/380-415 Vac, 3 PH, TEFC, Foot-Mounted, 15690733

Weg Electric 00118ET3E56CF3-S, 1 Hp, 1800 Rpm, 56C, 230/460//190-220/380-415 Vac, 3 PH, TEFC, Foot-Mounted, 15690733

$372.91
$372.91
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

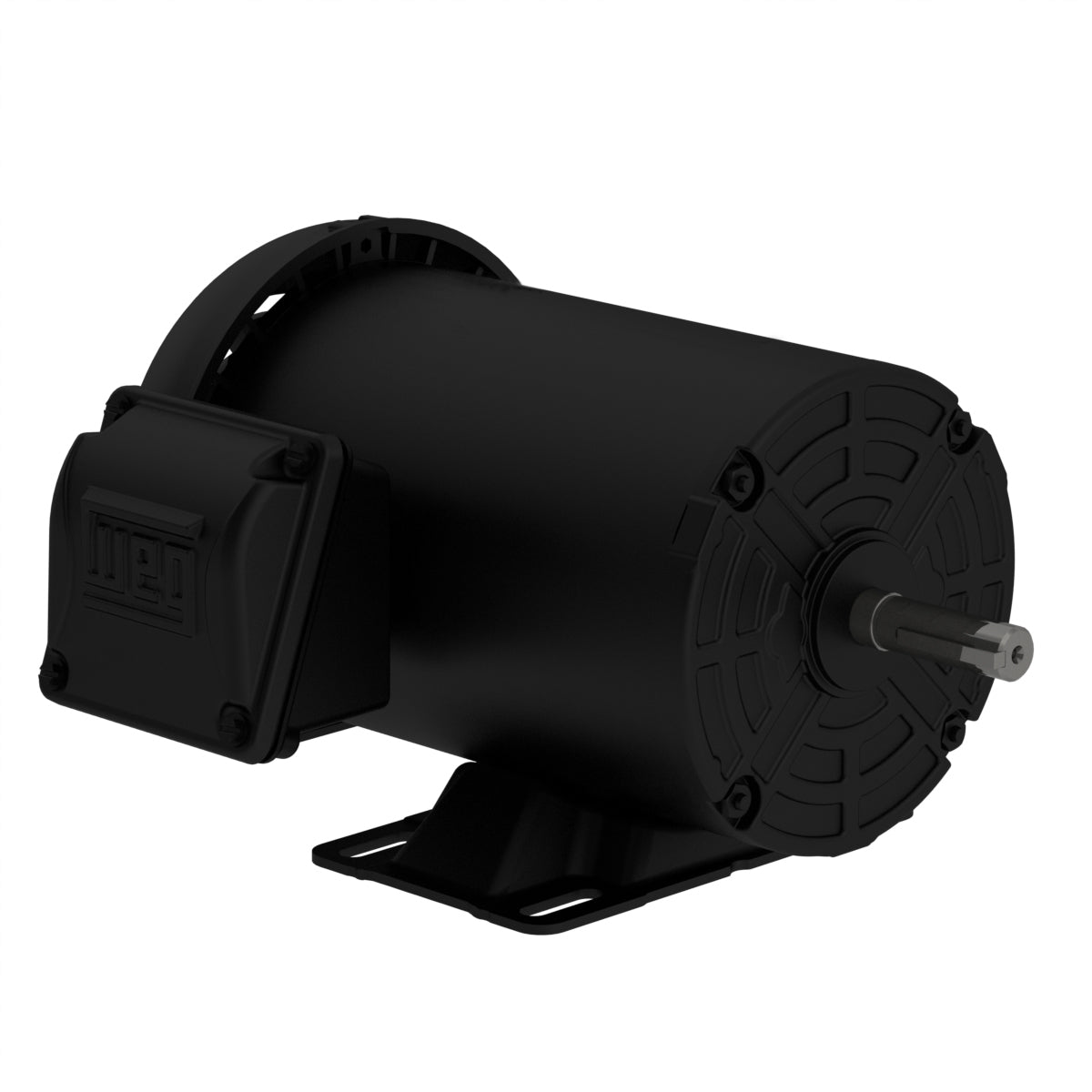

Weg Electric 00118ET3E56CF3-S, 1 Hp, 1800 Rpm, 56C, 230/460//190-220/380-415 Vac, 3 PH, TEFC, Foot-Mounted, 15690733

Specifications

Manufacturer Part Number 00118ET3E56CF3-S
Manufacturer WEG Electric
Family Series WEG Electric Motors
Description MOTOR 1HP 4P 56C WCF2
Type Premium Efficiency
Horsepower 1 hp
Kilowatts 0.75 kW
Speed 1,800 RPM
Number of Poles 4
Phase 3
Frequency 50 Hz, 60 Hz
NEMA Frame 56C
AC Voltage 230 VAC, 460 VAC
Nominal Voltage 240 VAC, 480 VAC
Enclosure Totally Enclosed Fan Cooled
Mounting Foot Mount
Current Rating 0.89 A
Service Factor 1.25
Inverter Duty No
Motor Type Foot Mount
Composition Rolled Steel
Bearing Type Ball
Shaft Diameter 0.63 "
Overload Protection None
Length 11.6 "
Approvals cCSAus
Net Weight 42.742 lbs
Gross Weight 42.742 lbs
