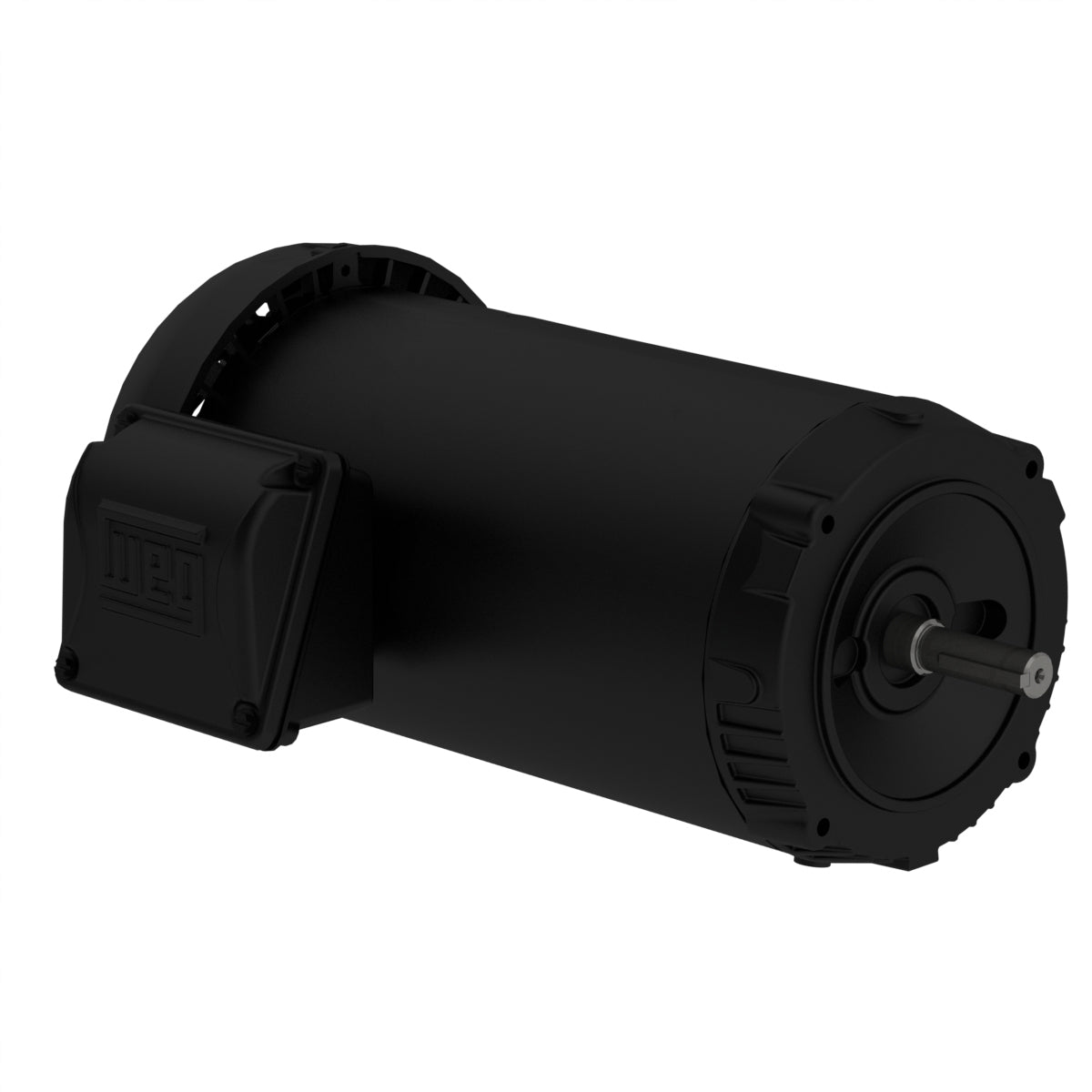

Weg Electric 00118ET3E56CFL-S, 1 Hp, 1800 Rpm, 56C FR, 230/460//190-220/380-415 Vac, 3 PH, TEFC, Footless, General Purpose Motor.

00118ET3E56CFL-S, 1 Hp, 1800 Rpm, 56C FR, 230/460//190-220/380-415 Vac, 3 PH, TEFC, Footless, General Purpose Motor.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 230/460//190-220/380-415 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 1 HP
Mounting Footless
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 56C
Output 1 HP (0.75 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1765 rpm
Slip 1.94 %
Rated voltage 230/460 V
Rated current 2.94/1.47 A
L. R. Amperes 25.3/12.6 A
LRC 8.6x(Code M)
No load current 1.78/0.890 A
Rated torque 2.98 ft.lb
Locked rotor torque 280 %
Breakdown torque 300 %
Locked rotor time 34s (cold) 19s (hot)
Moment of inertia (J) 0.1232 sq.ft.lb
Design B
Insulation Class F
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 52.0 dB(A)
