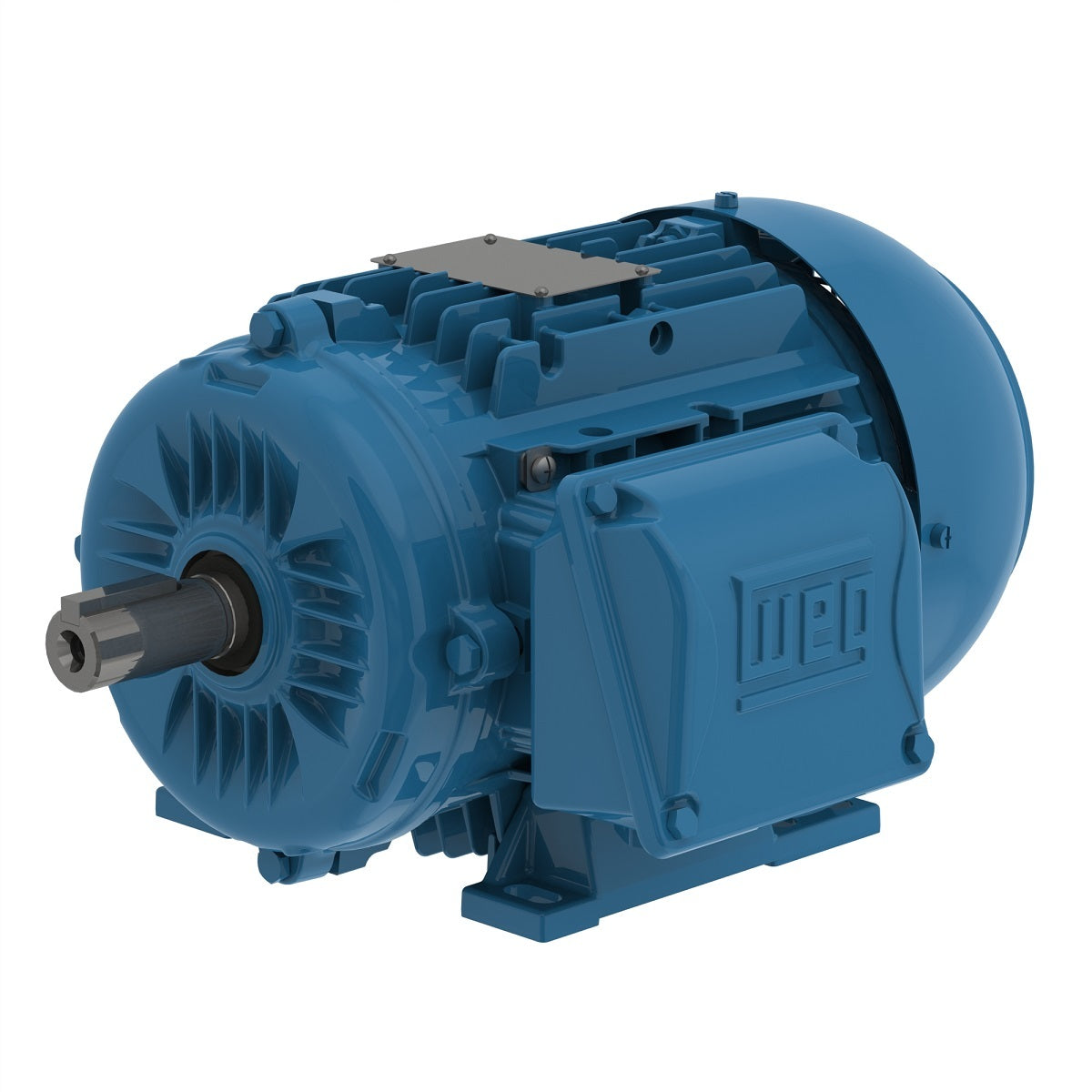

Weg Electric 00118ET3EAL90S-W22, 1 1/2 Hp,1800 Rpm, 90S/L FR, 230/460//380-415 Vac, 3 PH, TEFC, Foot-mounted, General Purpose Motor.

00118ET3EAL90S-W22, 1 1/2 Hp,1800 Rpm, 90S/L FR, 230/460//380-415 Vac, 3 PH, TEFC, Foot-mounted, General Purpose Motor.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 230/460//380-415 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 1.5 HP
Mounting Foot-mounted
Flange Without
Mounting B3L(E)
Terminal box¹ Right position
Enclosure IC411 - TEFC

Frame 90S/L
Output 1.5 HP (1.1 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1755 rpm
Slip 2.50 %
Rated voltage 230/460 V
Rated current 4.10/2.05 A
L. R. Amperes 34.8/17.4 A
LRC 8.5
No load current 2.43/1.22 A
Rated torque 4.49 ft.lb
Locked rotor torque 290 %
Breakdown torque 350 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 0.1305 sq.ft.lb
Design N
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 51.0 dB(A)
