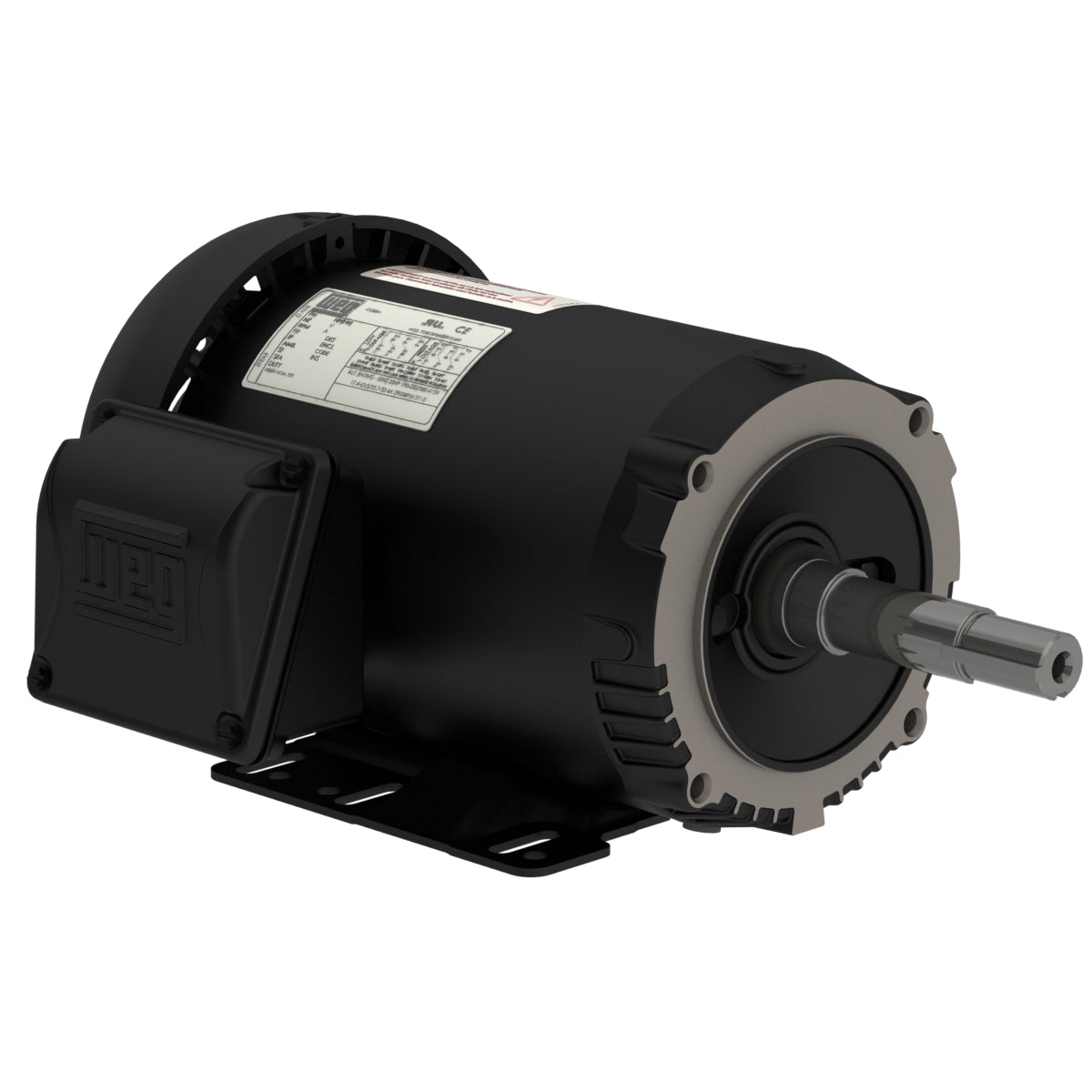

Weg Electric 00118ET3V143JM-S, 1 Hp, 1800 Rpm, 143/5JM FR, 200/400 Vac, 3 PH, TEFC, Foot-mounted, General Purpose Motor.

00118ET3V143JM-S, 1 Hp, 1800 Rpm, 143/5JM FR, 200/400 Vac, 3 PH, TEFC, Foot-mounted, General Purpose Motor.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 200/400 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 1 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC
