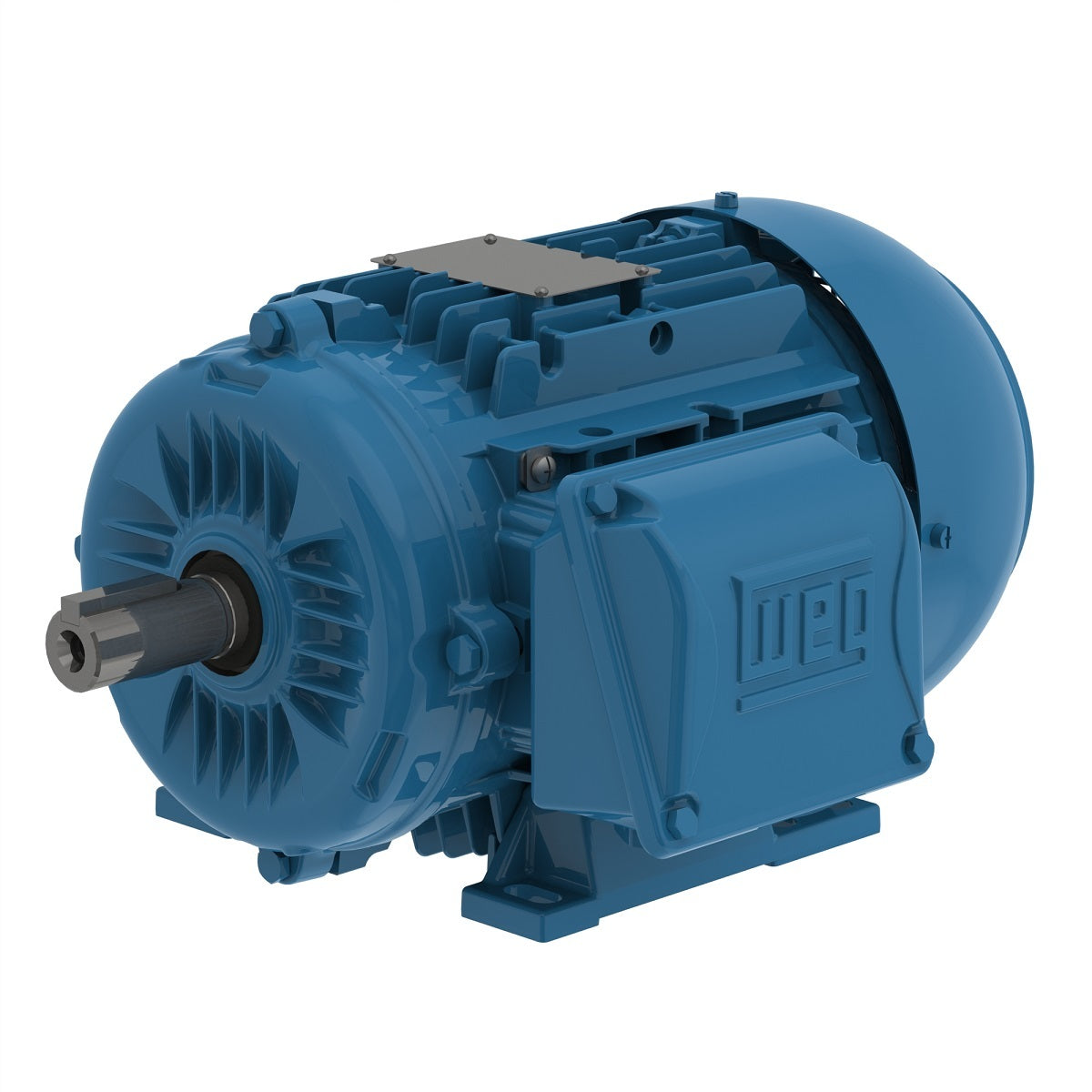

Weg Electric 00118ET3WAL90S-W22, 1 1/2 Hp, 1800 Rpm, 90S/L FR, 460//220-240/380-450 Vac, 3 PH, TEFC, Foot-mounted, General Purpose Motor.

00118ET3WAL90S-W22, 1 1/2 Hp, 1800 Rpm, 90S/L FR, 460//220-240/380-450 Vac, 3 PH, TEFC, Foot-mounted, General Purpose Motor.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 460//220-240/380-415 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 1.5 HP
Mounting Foot-mounted
Flange Without
Mounting B3L(E)
Terminal box¹ Right position
Enclosure IC411 - TEFC
