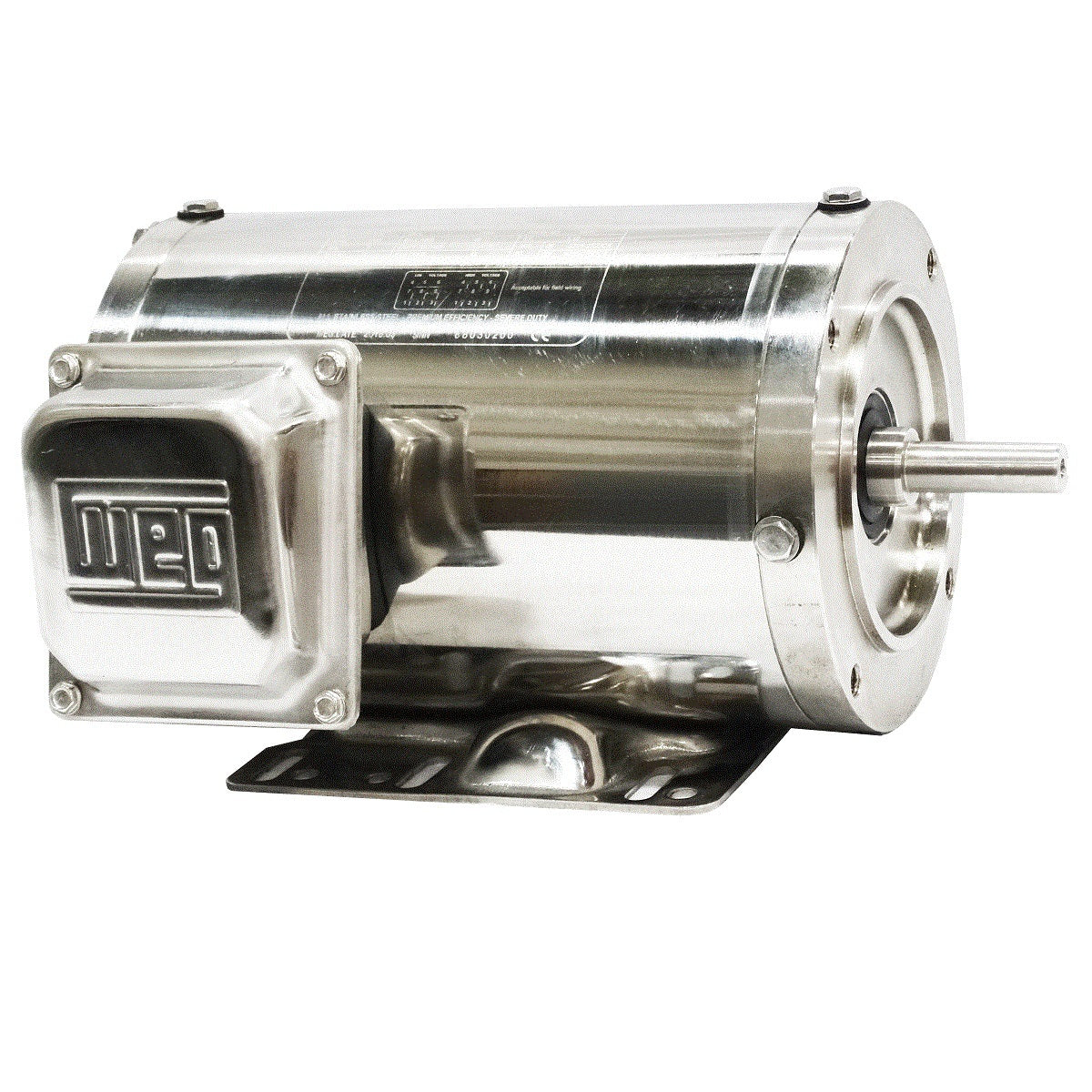

Weg Electric 00118NT3ESS143TC, 1 Hp, 1800 Rpm, 143TC FR, 230/430 Vac, TENV, Foot-mounted, General Purpose Motor.

00118NT3ESS143TC, 1 Hp, 1800 Rpm, 143TC FR, 230/430 Vac, TENV, Foot-mounted, General Purpose Motor.

Engineering Data

Standard NEMA MG-1
Degree of Protection IP56
Mounting F-1
Flange C
Frequency 60 Hz
Output rating 1 HP
Enclosure TENV
Number of poles 4
Mounting Foot-mounted
Efficiency NEMA Premium Efficiency
Terminal box¹ Left position
Frame 143TC
Voltage 230/460 V
Synchronous speed 1800 rpm
