Industrial Motors

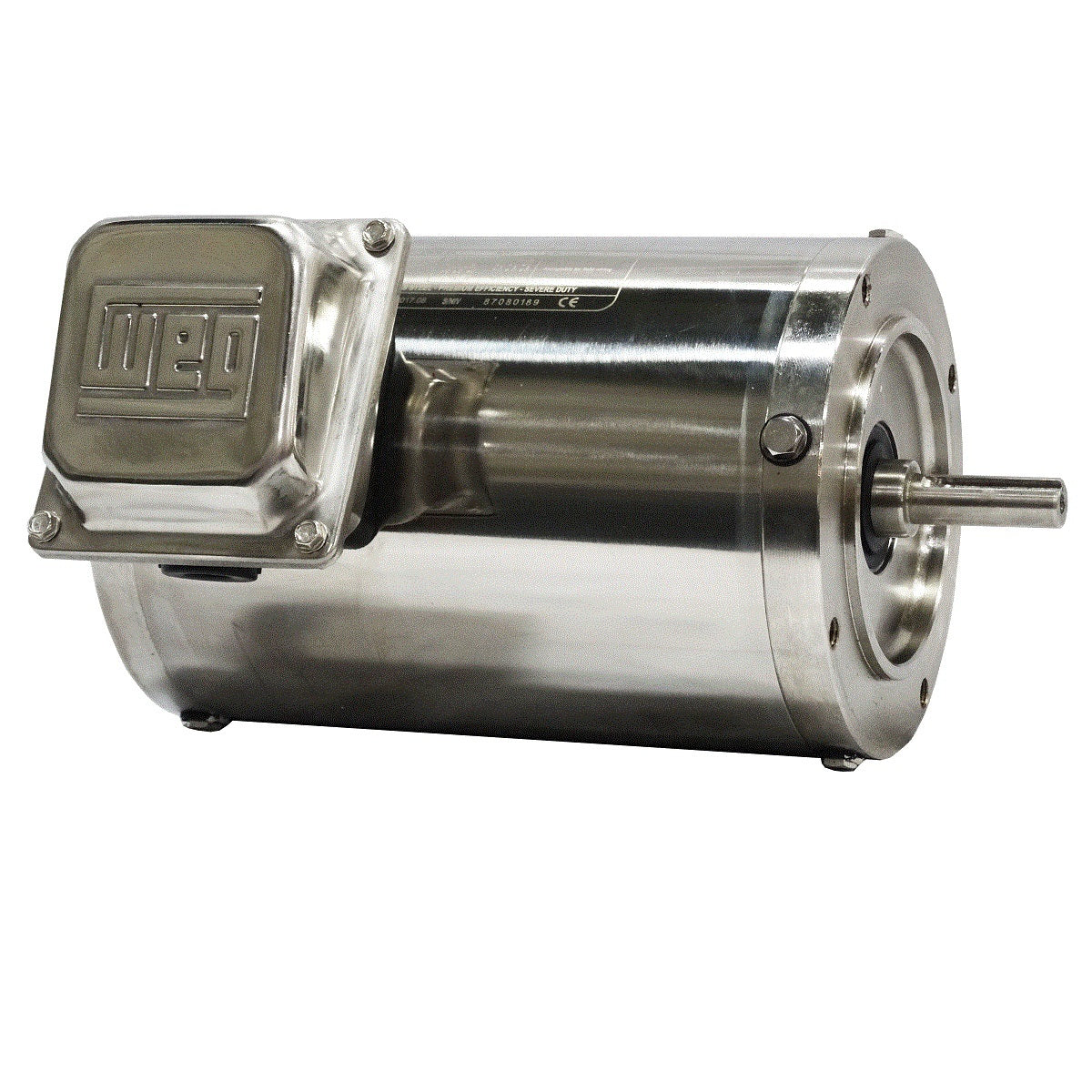

Weg Electric 00118NT3ESS56CFL, 1 Hp, 1800 Rpm, 56C FR, 230/430 Vac, TENV, Footless, Shark NEMA Premium Efficiency.

Weg Electric 00118NT3ESS56CFL, 1 Hp, 1800 Rpm, 56C FR, 230/430 Vac, TENV, Footless, Shark NEMA Premium Efficiency.

$733.36
$733.36
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

00118NT3ESS56CFL, 1 Hp, 1800 Rpm, 56C FR, 230/430 Vac, TENV, Footless, Shark NEMA Premium Efficiency.

Engineering Data

Standard NEMA MG-1
Degree of Protection IP56
Mounting F-1
Flange C
Frequency 60 Hz
Output rating 1 HP
Enclosure TENV
Number of poles 4
Mounting Footless
Efficiency NEMA Premium Efficiency
Terminal box¹ Left position
Frame 56C
Voltage 230/460 V
Synchronous speed 1800 rpm

Standard NEMA MG-1
Degree of Protection IP56
Mounting F-1
Frequency 60 Hz
Output rating 1 HP
Enclosure TENV
Frame Material Stainless steel
Flange C
Mounting Footless
Motor Application Shark
Efficiency NEMA Premium Efficiency
Terminal box¹ Left position
Frame 56C
Voltage 230/460 V
Synchronous speed 1800 rpm
Number of Poles 4
