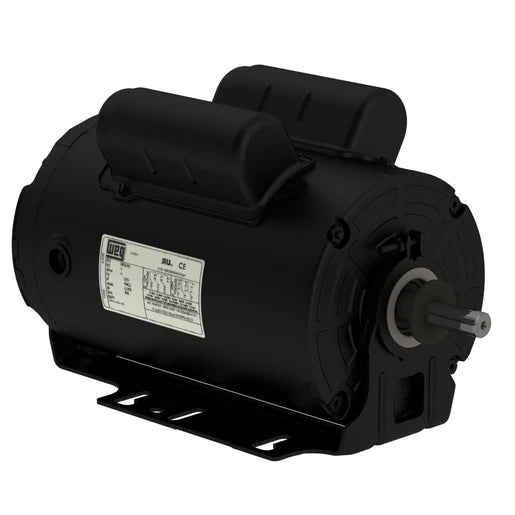

Weg Electric 00118OS1BRBFB56-S, 1 Hp, 1800 Rpm, 56 FR, 115/208-230 Vac, 1 PH, ODP, Foot-Mounted, 14590195

Weg Electric 00118OS1BRBFB56-S, 1 Hp, 1800 Rpm, 56 FR, 115/208-230 Vac, 1 PH, ODP, Foot-Mounted, 14590195

$352.44
$352.44
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Weg Electric 00118OS1BRBFB56-S, 1 Hp, 1800 Rpm, 56 FR, 115/208-230 Vac, 1 PH, ODP, Foot-Mounted, 14590195

Specifications

Manufacturer Part Number 00118OS1BRBFB56-S
Manufacturer WEG Electric
Family Series WEG Electric Motors
Description MOTOR 1HP 4P 56 WCA2 RO S SI PH
Type Fractional HP
Horsepower 1 hp
Kilowatts 0.75 kW
Speed 1,800 RPM
Number of Poles 4
Phase 1
Frequency 60 Hz
NEMA Frame 56
AC Voltage 115 VAC, 208-230 VAC
Nominal Voltage 120 VAC, 208 VAC, 240 VAC
Enclosure Open Drip Proof
Mounting Foot Mount
Current Rating 6.75 A
Service Factor 1.15
Inverter Duty No
Motor Type Foot Mount
Composition Rolled Steel
Shaft Diameter 0.63 "
Overload Protection None
Length 11.42 "
Approvals cCSAus
Net Weight 39.087 lbs
Gross Weight 39.087 lbs
