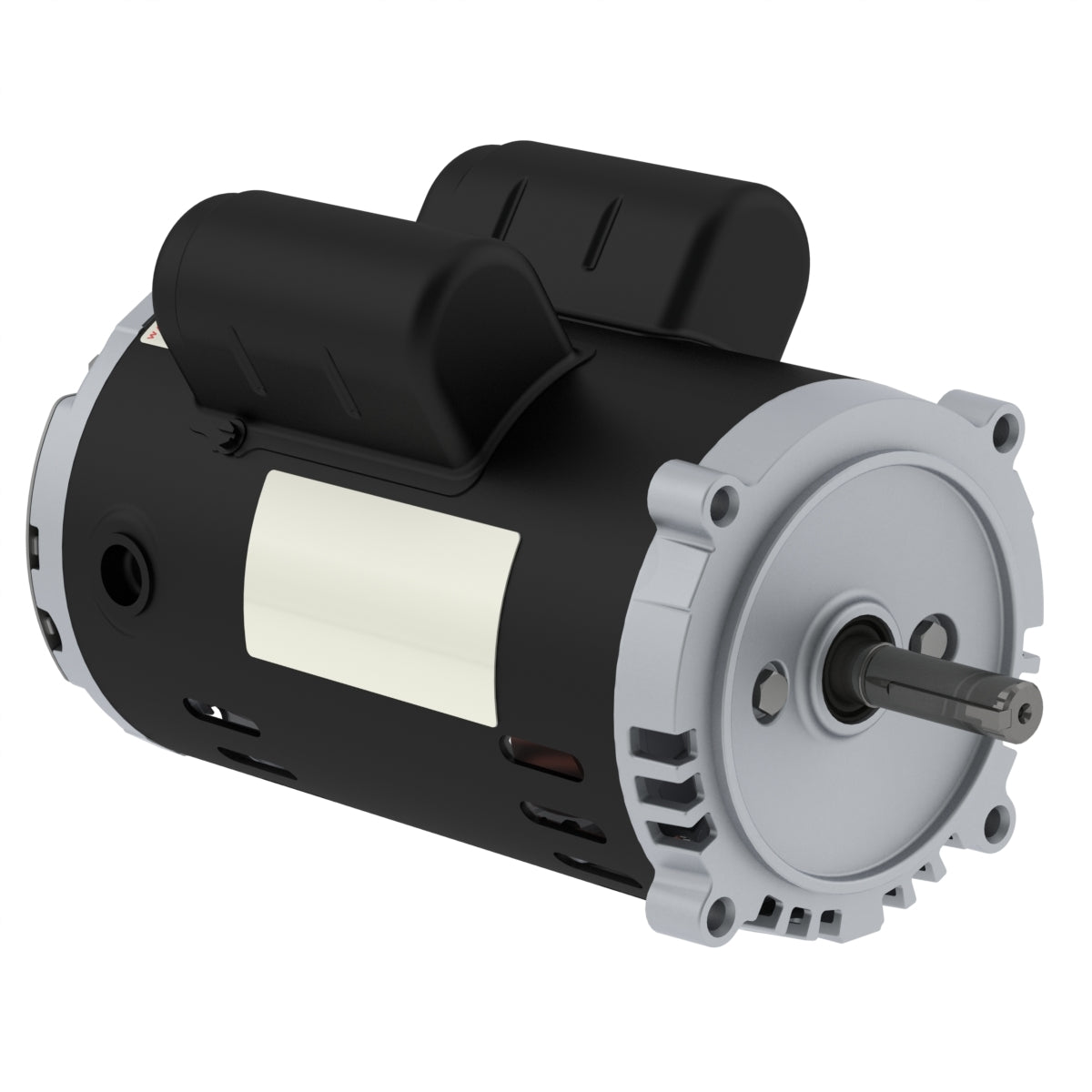

Weg Electric 00118OT1B56CFL-S, 1 Hp, 1800 Rpm, 56C FR, 115/208-230 Vac, 1 PH, ODP, Footless, Rolled Steel.

00118OT1B56CFL-S, 1 Hp, 1800 Rpm, 56C FR, 115/208-230 Vac, 1PH, ODP, Footless, Rolled Steel.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 115/208-230 V
Number of poles 4
Synchronous speed 1800 rpm
Output rating 1 HP
Mounting Footless
Flange C
Mounting F-1
Terminal box¹ Without Terminal Box
Enclosure IC01 - ODP
