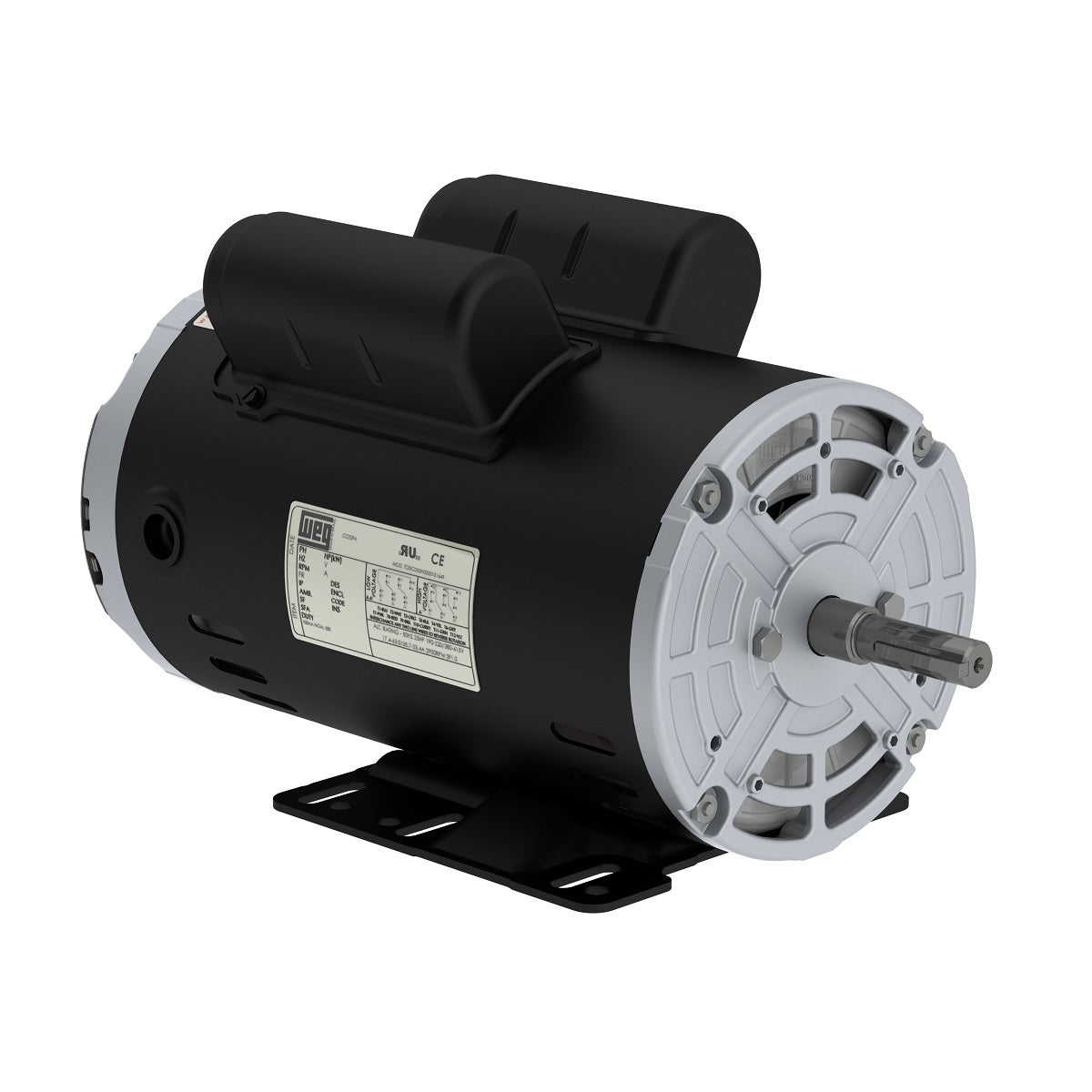

Weg Electric 00118OT1BRBO56-S, 1 Hp, 1800 Rpm, 56H FR, 115/208-230 Vac, 1 PH,ODP, Foot-mounted, Rolled Steel.

00118OT1BRBO56-S, 1 Hp, 1800 Rpm, 56H FR, 115/208-230 Vac, 1 PH,ODP, Foot-mounted, Rolled Steel.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 115/208-230 V
Number of poles 4
Synchronous speed 1800 rpm
Output rating 1 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Without Terminal Box
Enclosure IC01 - ODP

Frame 56H
Output 1 HP (0.75 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1750 rpm
Slip 2.78 %
Rated voltage 115/208-230 V
Rated current 9.00/4.98-4.50 A
L. R. Amperes 75.6/41.8-37.8 A
LRC 8.4x(Code K)
No load current 3.40/1.47-1.70 A
Rated torque 3.00 ft.lb
Locked rotor torque 260 %
Breakdown torque 250 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 0.1232 sq.ft.lb
Design L
Insulation Class F
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 52.0 dB(A)
