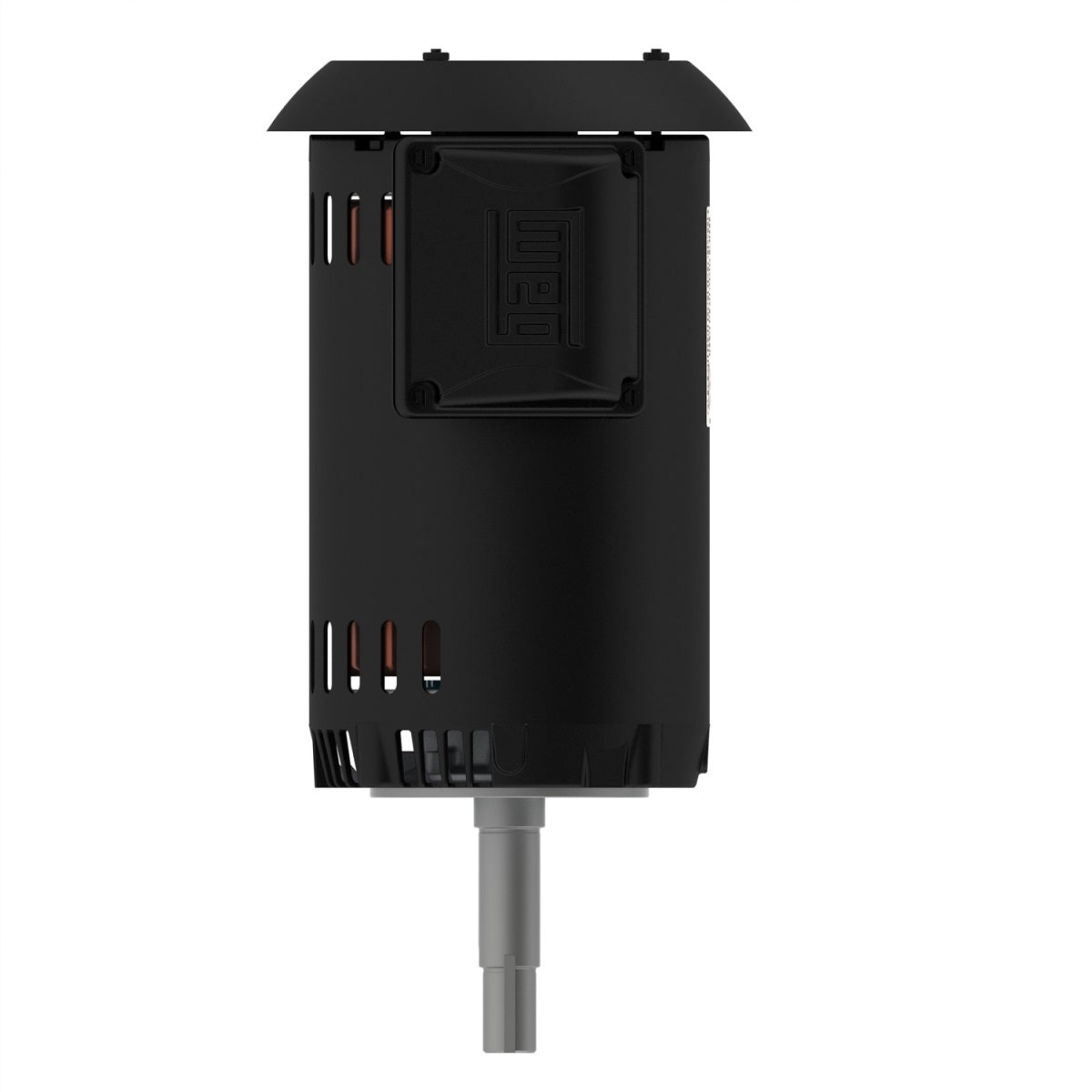

Weg Electric 00118OT3E143JMV-S, 1 Hp, 1800 Rpm, 143/5JM FR, 230/460//190-220/380-415 Vac, 3 PH, ODP, Footless, Rolled Steel.

00118OT3E143JMV-S, 1 Hp, 1800 Rpm, 143/5JM FR, 230/460//190-220/380-415 Vac, 3 PH, ODP, Footless, Rolled Steel.

Engineering Data

Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//190-220/380-415 V
Number of poles 4
Synchronous speed 1800 rpm
Output rating 1 HP
Mounting Footless
Flange C
Mounting W-6
Terminal box¹ Left position
Enclosure IC01 - ODP
