Industrial Motors

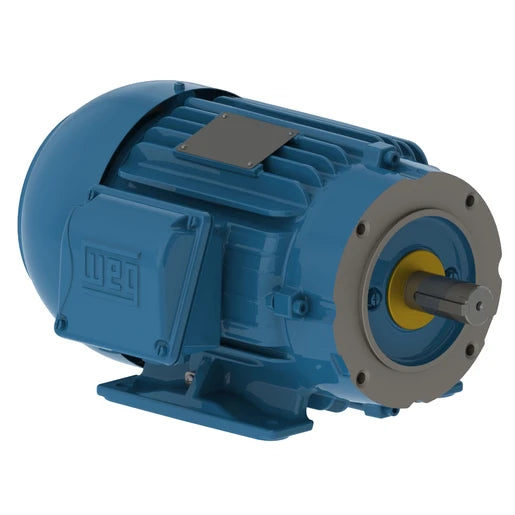

Weg Electric 00118ST3HIER143TC-W2, 1 Hp, 1800 Rpm, 143TC Frame, 575 Vac, TEFC, 3 PH, Footless, NEMA Premium Efficiency, 15459767

Weg Electric 00118ST3HIER143TC-W2, 1 Hp, 1800 Rpm, 143TC Frame, 575 Vac, TEFC, 3 PH, Footless, NEMA Premium Efficiency, 15459767

$890.00
$890.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Weg Electric 00118ST3HIER143TC-W2, 1 Hp, 1800 Rpm, 143TC Frame, 575 Vac, TEFC, 3 PH, Footless, NEMA Premium Efficiency, 15459767

SPECIFICATIONS

Manufacturer Part Number 00118ST3HIER143TC-W2
Manufacturer WEG Electric
Family Series WEG Electric Motors
Description MOTOR 1HP 4P 143TC WFF2
Type Severe Duty
Horsepower 1 hp
Kilowatts 0.75 kW
Speed 1,800 RPM
Number of Poles 4
Phase 3
Frequency 60 Hz
NEMA Frame 143TC
AC Voltage 575 VAC
Enclosure Totally Enclosed Fan Cooled
Mounting Foot Mount
Current Rating 1.21 A
Service Factor 1.25
Inverter Duty No
Motor Type Footless
Composition Cast Iron
Shaft Diameter 0.88 "
Overload Protection None
Length 13.32 "
Approvals cCSAus, cULus
Net Weight 55.35 lbs
Gross Weight 55.35 lbs
View full details

Attachments
