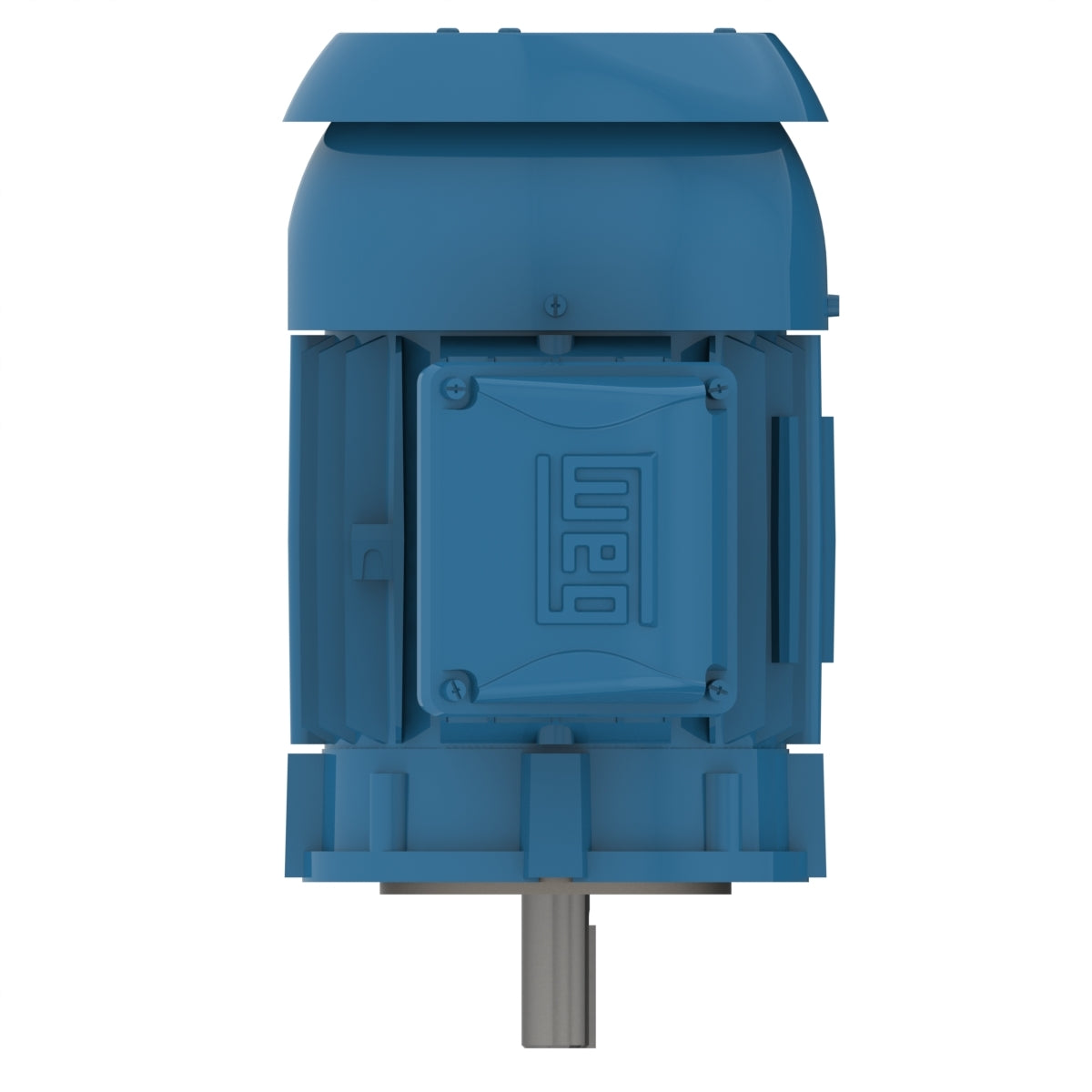

Weg Electric 00118ST3QIER143TC-W2, 1 Hp, 1800 Rpm, 143TC FR, 460 Vac, TEFC, 3 PH, Footless, NEMA Premium Efficiency.

00118ST3QIER143TC-W2, 1 Hp, 1800 Rpm, 143TC FR, 460 Vac, TEFC, 3 PH, Footless, NEMA Premium Efficiency.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 460 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 1 HP
Mounting Footless
Flange C
Mounting W-6
Terminal box¹ Left position
Enclosure IC411 - TEFC
