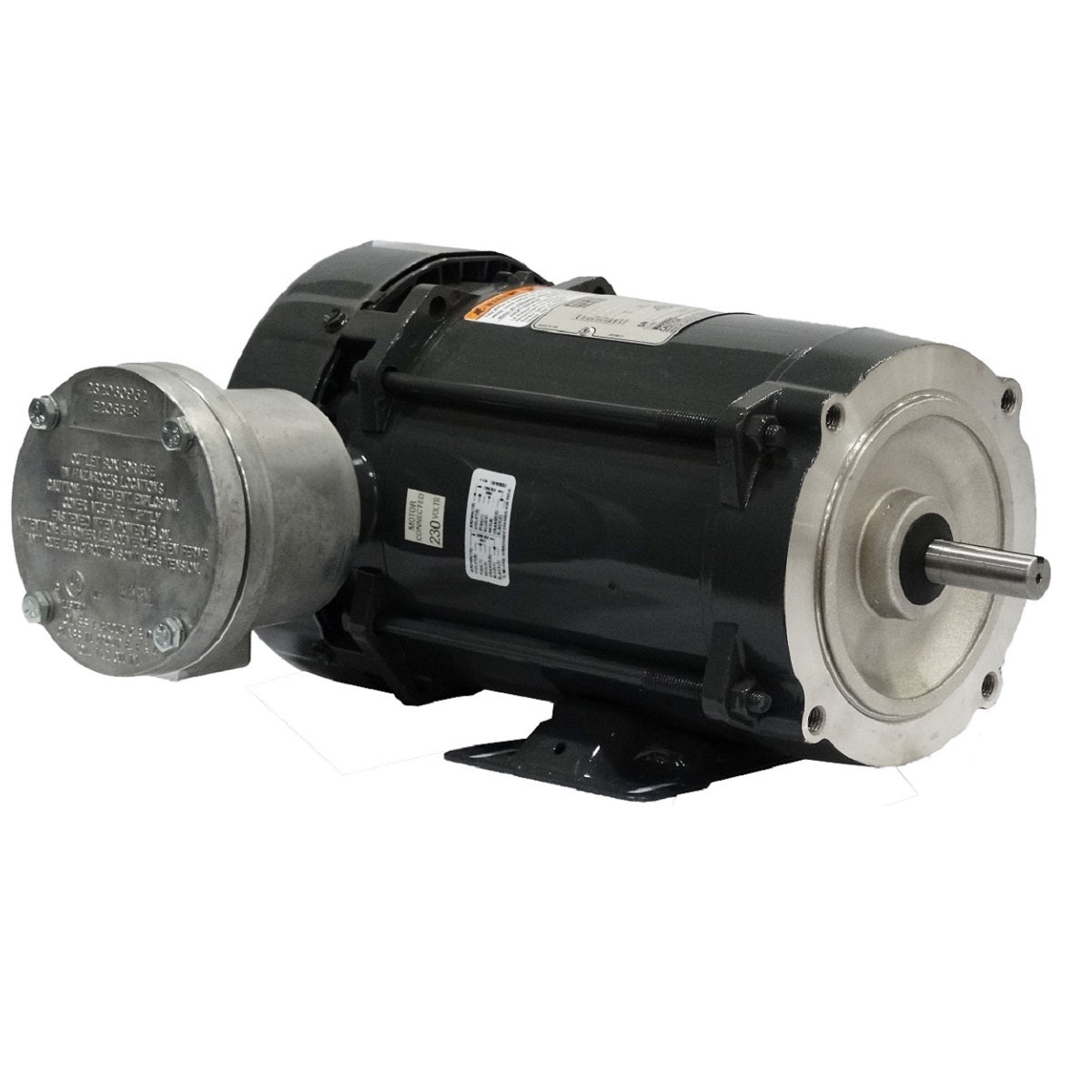

Weg Electric 00118XS1B56C, 1 Hp, 1800 Rpm, 56C FR, 115/208-230 Vac, TEFC, Foot-mounted, Flameproof Motor Standard Efficiency.

00118XS1B56C, 1 Hp, 1800 Rpm, 56C FR, 115/208-230 Vac, TEFC, Foot-mounted, Flameproof Motor Standard Efficiency.

Engineering Data

Standard NEMA MG-1
Degree of Protection IP55
Mounting F-1
Flange C
Frequency 60 Hz
Output rating 1 HP
Enclosure TEFC
Number of poles 04P
Mounting Foot-mounted
Efficiency Standard Efficiency
Terminal box¹ Left position
Frame 56C
Voltage 115/208-230 V
Synchronous speed 1800 rpm
